NTN Tapped-Base Pillow Block Ball Bearing
#Grup produk P109570712
Kondisi Barang:
Authorized Partner
Spesifikasi
| UNSPSC | 31171511 |
|---|---|
| Base Height (inch) | 0.55 |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Diameter (inch) | 1 |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Dynamic Radial Load Capacity (lbf) | 2470 |
| Housing Material | Polymer |
| Includes | Open End Cap and Closed End Cap |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Manufacturer Part Number | SUCTBL205-16CCFG1 |
| Maximum Temperature (°F) | 212 |
| Minimum Temperature (°F) | 14 |
| Mount Hole Center to Center Length (inch) | 2 |
| Mount Type | Tapped Base |
| Mounting Bolt Size | 3/8\"-16 |
| Mounting Surface to Shaft Center Height (inch) | 1.437 |
| Number of Mount Holes | 2 |
| Overall Height (inch) | 2.875 |
| Overall Length (inch) | 3 |
| Overall Width (inch) | 2.75 |
| Seal Type | Contact |
| Series | TBL-FG1 |
| Shaft Locking Type | Set Screws |
| Standards | NSF H1 |
| Static Radial Load Capacity (lbf) | 1800 |
| Sub Brand | SENTINEL |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

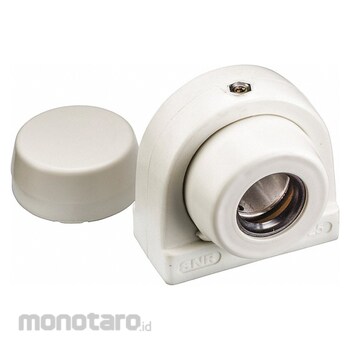

These tapped-base pillow block ball bearings meet FDA/USDA standards for H1 grease and NSF standards for use in food processing applications.
Feature
Pillow Block Bearing Base Height 0.55 in Bearing Insert Material Stainless Steel Bearing Insert Type Radial Ball Bore Diameter 1 in Bore Type Cylindrical Center Height 1 7/16 in Closure Double Sealed Housing Material Polymer Lubricant Material FDA/USDA-H1 Solid Grease Maximum Temperature 212 Degrees F Minimum Temperature 14 Degrees F Mount Hole Center-to-Center Length 2 in Mount Type Tapped Base Number of Mount Holes 2 Overall Height 2.875 in Overall Length 3 inDokumentasi Produk
