MOYNO Pedestal-Mount Progressive Cavity Pump
#Grup produk P109569813
Sebelum PPN:
Rp21.999.900 - Rp42.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151553 |
|---|---|
| Discharge Connection Type | NPT |
| Fluid Temperature Range (°F) | 10 to 160 |
| Housing Material | Cast Iron |
| Intake Connection Type | NPT |
| Max. Viscosity (CPS) | 20000 |
| Maximum Fluid Temperature (°F) | 160 |
| Maximum Motor Speed (rpm) | 1750 |
| Minimum Fluid Temperature (°F) | 10 |
| Minimum Motor Speed (rpm) | 150 |
| Pump Operation Type | Non-Motorized |
| Rotor Material | Stainless Steel |
| Seal Material | Carbon; Ceramic |
| Seal Type | Mechanical |
| Stator Material | Buna-N |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

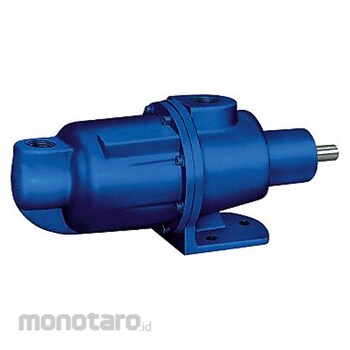

These pedestal-mount progressive cavity pumps do not include a motor. They use a rotor and elastomer stator to transfer liquids through a system. They're suited for handling viscous liquids and put minimal shear pressure on a fluid. Choosing a pedestal pump sized for the appropriate HP motor ensures proper performance.
Feature
Progressive Cavity Pump Discharge Connection Size 3/4 in Discharge Connection Type NPT Horsepower (Maximum) 1/2 hp Housing Material Cast Iron Intake Connection Size 3/4 in Intake Connection Type NPT Media Temperature (Maximum) 160 Degrees F Media Temperature (Minimum) 10 Degrees F Operating Pressure (Maximum) 50 psi Pump Operation Type Non-Motorized Rotor Material Stainless Steel Seal Material Carbon Ceramic Solid Diameter (Maximum) 4.8 mm Stator Material Buna-NUlasan Produk
