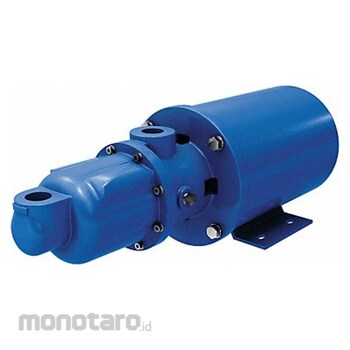

MOYNO Motor-Drive Progressive Cavity Pump
#Grup produk P109569798
Sebelum PPN:
Rp40.999.900 - Rp61.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151553 |
|---|---|
| Discharge Connection Type | NPT |
| Frequency (Hz) | 60 |
| Housing Material | Cast Iron |
| Intake Connection Type | NPT |
| Max. Viscosity (CPS) | 20000 |
| Maximum Fluid Temperature (°F) | 160 |
| Maximum Motor Speed (rpm) | 1750 |
| Media Temperature Range (°F) | 10 to 160 |
| Minimum Fluid Temperature (°F) | 10 |
| Motor Mounting Type | Close Coupled |
| Pump Operation Type | Motorized |
| Rotor Material | Stainless Steel |
| Seal Material | Carbon; Ceramic |
| Seal Type | Mechanical |
| Stator Material | Buna-N |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These progressive cavity pumps include a motor. They use a helix-shaped rotor and an elastomer stator to dose or transfer liquids in a system.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Motorized Progressive Cavity Pump Discharge Connection Size 3/4 in Discharge Connection Type NPT Horsepower (Maximum) 1/2 hp Housing Material Cast Iron Intake Connection Size 3/4 in Intake Connection Type NPT Media Temperature (Maximum) 160 Degrees F Media Temperature (Minimum) 10 Degrees F Nameplate Voltage 115/230V AC Operating Pressure (Maximum) 40 psi Pump Operation Type Motorized Rotor Material Stainless Steel Seal Material Carbon Ceramic Solid Diameter (Maximum) 8 mmUlasan Produk
