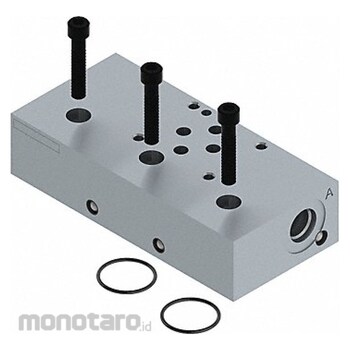

MONARCH Hydraulic Valve Manifold
#Grup produk P109569637
Spesifikasi
| UNSPSC | 40141608 |
|---|---|
| Body Material - Hydraulic Valves | Aluminium |
| For use with | DO3 Directional Valves |
| Includes | (2) O-Rings; D03 Manifold Mounting Pad; Mounting Hardware |
| Max. Pressure - Hydraulic Valves (psi) | 3000 |
| NFPA Size | D03 |
| Number of Stations | 1 |
| Overall Height (inch) | 1-7/32 |
| Overall Length (inch) | 5-11/64 |
| Overall Width (inch) | 2-29/64 |
| Port Size - Hydraulic Valves | #6 SAE |
| Temperature Range (°F) | -20 to 130 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These hydraulic valve manifolds smoothly regulate fluid flow and pressure between pumps, actuators, and other components in a hydraulic system. Multiple line connections at one central location allow the use of essential accessories, such as pressure switches and gauges. Applications include: machine tools, material handling, marine, off-highway equipment, food processing, heavy construction equipment, oil field, and farm equipment.
Feature
Valve Manifold Number of Stations 1 D03 Port Size - Hydraulic Valves #6 SAE Max Pressure - Hydraulic Valves 3 000 psi Body Material - Hydraulic Valves Aluminum Mounting Hole Size 1/4-20 Temp Range -20 Degrees to 130 Degrees F Overall Length 5 11/64 in Overall Width 2 29/64 in Overall Height 1 7/32 in For Use With DO3 Directional Valves Includes (2) O-Rings D03 Manifold Mounting Pad Mounting HardwareUlasan Produk
