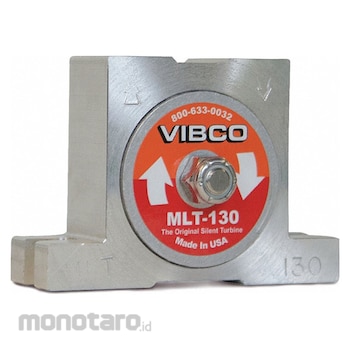

MILLENNIUM Turbine & Ball Pneumatic Vibrator
#Grup produk P109568957
Spesifikasi
| UNSPSC | 20111606 |
|---|---|
| Air Flow Rate (CFM) | 4.5 @ 60psi; 5.5 @ 80psi |
| Application | Beverage; Chemical; Food; Pharmaceutical Industries |
| Bin Weight Capacity (lbs) | 750 |
| Duty cycle | Continuous |
| Force (lbs) | 50 @ 60psi; 75 @ 80psi |
| Housing Material | Aluminium |
| Inlet Connection (inch) | 1/8 NPT |
| Manufacturer Part Number | MLT-130 |
| Maximum Force (lbf) | 75 |
| Maximum Vibration Speed (vpm) | 10500 |
| Mount Plate Required | No |
| Mount Type | Channel Iron and Mounting Plate Recommended |
| Outlet Connection (inch) | 1/4 NPT |
| Overall Dim. (LxWxH) (inch) | 3.5x1.89x2.52 |
| Pneumatic Vibrator Type | Turbine |
| Series | MLT |
| Sound Level (dBA) | 68 |
| Standards | OSHA |
| Vibration Speeds @ PSI (vpm) | 10500 @ 80psi; 7500 @ 60psi |
| Weight (lbs) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Chemical resistant turbine and ball vibrators feature housings made from sealed and corrosion-resistant materials. They do not require lubrication, making them suitable for harsh chemical environments.
Feature
Pneumatic Vibrator Housing Material Aluminum Outlet Connection Size 1/4 in Outlet Connection Type NPT Air Flow Rate 4.5 cfm @ 60 psi 5.5 cfm @ 80 psi Maximum Force 75 lbf Inlet Connection Size 1/8 in Inlet Connection Type NPT Maximum Vibration Speed 10 500 vpm Maximum Bin Weight Capacity 750 lb Overall Height 2.52 in Overall Length 3.5 in Overall Width 1.89 in Sound Level 68 dBA Duty Cycle Continuous Pneumatic Vibrator Type Turbine Force @ PSI 50 lbf @ 60 psi 75 lbf @ 80 psiUlasan Produk
