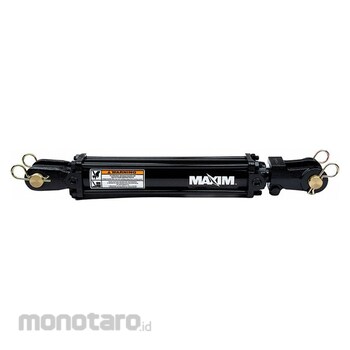

MAXIM Tie-Rod Hydraulic Cylinder
#Grup produk P109568610
Sebelum PPN:
Rp2.799.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 27121602 |
|---|---|
| Cylinder Style | Tie-Rod |
| Duty Rating | Standard Duty |
| Finish | Black |
| Includes | Pins and Clips |
| Maximum Pressure (psi) | 2500 |
| Piston Material | Ductile Iron |
| Rod Seal Type | Polypak |
| Single Acting/Double Acting | Double Acting |
| Temperature Range (°F) | -20 to 220 |
| Tie Rods | High Tensile |
| Tube Material | Precision Honed Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Standard-duty tie-rod hydraulic cylinders are double-acting steel cylinders rated to 2500 psi. They are slightly smaller than heavy-duty cylinders. They provide power in both push and pull directions, allowing for more precise positioning than single-acting cylinders. The hard chrome-plated case-hardened steel rod provides smooth movement and a long service life.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Hydraulic Cylinder Tie-Rod Bore Dia 2 in Stroke Length 6 in Rod Dia 1 1/8 in Retracted Length 16 1/4 in Port Size 3/8 in NPT Extended Length 22 1/4 in Max Pressure 2 500 psi Temp Range -20 Degrees to 220 Degrees F Piston Material Ductile Iron Tube Material Precision Honed Steel Tie Rods High Tensile Finish Black Includes Pins and Clips Pin Dia 1 inUlasan Produk
