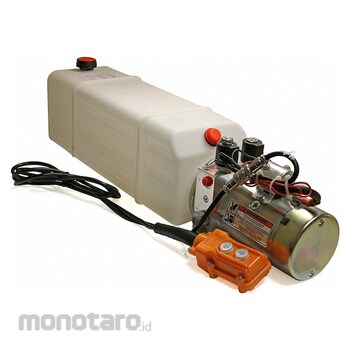

MAXIM DC Hydraulic Power Unit
#Grup produk P109568577
Spesifikasi
| UNSPSC | 39121004 |
|---|---|
| Built-In Features | Check Valve |
| Circuit Design | Double Acting |
| Control Station Included | Yes |
| Control Station No. of Buttons | 2 |
| Control Valve Configuration | 4-Way/2-Position |
| Control Valve Type | Solenoid |
| Cord Length (ft) | 10 |
| Duty cycle | Intermittent |
| Flow @ 1000psi (gpm) | 1.8 |
| Flow @ 1500psi (gpm) | 1.5 |
| Flow @ 2000psi (gpm) | 1.3 |
| Flow @ 2500psi (gpm) | 1.3 |
| Flow @ 3000psi (gpm) | 1.3 |
| Flow @ 500psi (gpm) | 2.2 |
| Frame Design - Hydraulic Power Units | Frame Mount |
| Full Load Amps (A) | 325 |
| Horsepower (HP) | 1.6 |
| Manufacturer Part Number | 253147 |
| Maximum Pressure (psi) | 2500 |
| Mounting Orientation - Power Units | Horizontal |
| Nominal Flow (gpm) | 1.3 |
| Overall Height (inch) | 7-51/64 |
| Overall Length (inch) | 30-1/2 |
| Overall Width (inch) | 7-3/32 |
| Power Source - Power Units | DC Power |
| Pressure Port Thread Size | 9/16\"-18 (SAE 6) |
| Pump Displacement (cu-in/rev) | 2.1 |
| Reservoir Capacity (gal) | 3 |
| Return Port Thread Size | 9/16\"-18 (SAE 6) |
| Rotation Speed (rpm) | 2600 |
| Tank Material | Poly |
| Voltage (V) | 12 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double-acting DC hydraulic power units (HPUs) come with the control valve necessary for operating double-acting cylinders to provide power in two directions (usually up and down). System allows precise control of upward and downward movement when raising and lowering platforms, compared to single-acting system that provides power in one direction only such as raising a lift and relying on gravity to return the lift to the ground.
Feature
Hydraulic Power Unit Circuit Design Double Acting Power Source - Power Units DC Power 1.6 hp HP RPM 2 600 RPM 12V DC Full Load Amps 325 Pump Stage 1 Max Pressure 2 500 psi Nominal Flow 1.3 gpm Reservoir Capacity 3 gal Overall Length 30 1/2 in Overall Width 7 3/32 in Overall Height 7 51/64 inUlasan Produk
