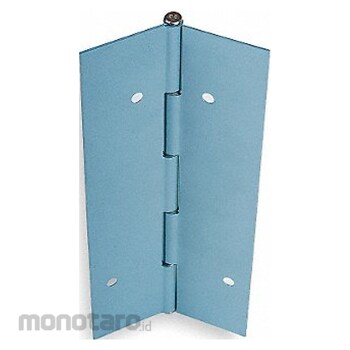

MARKAR Piano Hing
#Grup produk P109568115
Spesifikasi
| UNSPSC | 31162403 |
|---|---|
| Door Leaf Height (inch) | 84 |
| Door Leaf Thickness (inch) | 0.125 |
| Door Leaf Width (inch) | 1-3/4 |
| Finish | Gray Enamel |
| Frame Leaf Height (inch) | 84 |
| Frame Leaf Thickness (inch) | 0.125 |
| Frame Leaf Width (inch) | 1-15/16 |
| Hardware | Included |
| Holes | With |
| Holes per Leaf | 2 |
| Length (ft) | 7 |
| Ligature Resistant | No |
| Load Capacity (lbs) | 600 |
| Material | Steel |
| Mounting | Full Mortise |
| Orientation | Non Handed |
| Overall Knuckle Height (inch) | 1 |
| Overall Width (inch) | 4-1/2 |
| Pin Dia. (inch) | 1/4 |
| Pin Material | Stainless Steel |
| Pin Type | Nonremovable |
| Range of Motion (°) | 180 |
| Required Door Thickness (inch) | 1-3/4 |
| Standards | ANSI/BHMA Standard A156.26 Grade 2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Markar continuous hinges distribute weight and stresses along the full length of the door and frame, supporting the doors full length up to ten feet. Markar continuous hinges are tested for over a million cycles, and are designed to offer trouble-free door operation. They are also recommended for heavy doors and for situations where doors are exposed to misuse.
Feature
Continuous Hinge Ligature Resistant No Steel Material 180 Degrees Range of Motion Gray Enamel Finish With Holes 600 lb Load Capacity Non Handed Orientation 1 in Overall Knuckle Height 84 in Door Leaf Height 84 in Frame Leaf Height 1 3/4 in Door Leaf Width 1 15/16 in Frame Leaf Width 0.125 in Door Leaf Thickness 0.125 in Frame Leaf Thickness 1-3/4 in Required Door Thickness Length 7 ft Included Hardware 2 Holes per Leaf Full Mortise Mounting 1/4 in Pin Dia.Ulasan Produk
