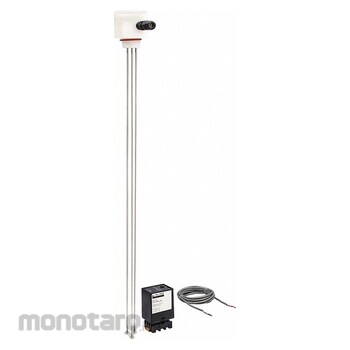

MADISON Conductivity Liquid Level Sensor
#Grup produk P109567772
Spesifikasi
| UNSPSC | 39121531 |
|---|---|
| Body Material | Polypropylene |
| Connection Size (inch) | 1 |
| Connection Type | NPT |
| Enclosure Rating | Not Rated |
| Float Material | 316 Stainless Steel |
| For Media Type | Chemicals; Nonhazardous Liquids |
| Manufacturer Part Number | M3784-110 |
| Maximum Media Temperature (°F) | 221 |
| Maximum Operating Pressure (psi) | 30 |
| Mounting Orientation | Vertical |
| Nameplate Voltage (V) | 120 AC |
| Number of Digital Outputs | 1 |
| Overall Length (inch) | 28.2 |
| Probe Material | 316 Stainless Steel |
| Probe Type | Rod |
| Process Connection (inch) | 1 NPT |
| Product Type | Float Switch |
| Range (inch) | 25.8 |
| Standards | None |
| Stem Length (inch) | 25-3/4 |
| Stem Material | 316 Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Float Switch Product Type Float Switch Connection Size 1 in For Media Type Chemicals Nonhazardous Liquids Connection Type NPT Body Material Polypropylene Accuracy Not Applicable Range 25.8 in Stem Length 25 3/4 in Operating Pressure - Maximum 30 psi Media Temperature - Maximum 221 Degrees F Mounting Orientation Vertical Enclosure Rating Not Rated Number of Outputs - Analog Not Applicable Float Diameter Not Applicable Number of Outputs - Digital 1 Float Length Not ApplicableUlasan Produk
