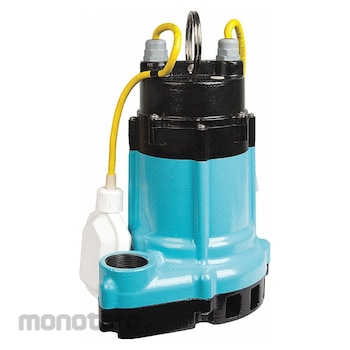

LITTLE GIANT Pompa Celup Air Kotor High Temperature (Sump Pump)
#Grup produk P109567134
Spesifikasi
| UNSPSC | 40151512 |
|---|---|
| Agency Compliance | cCSAus |
| Alarm Included | No |
| Amps (A) | 8 |
| Body Dia. (inch) | 6-49/64 |
| Body Material | Cast Iron |
| Cord Length (ft) | 15 |
| Discharge (inch) | 1-1/2 FNPT |
| Duty cycle | Continuous |
| Flow Rate @ 10ft. of Head (gpm) | 65 |
| Flow Rate @ 15ft. of Head (gpm) | 60 |
| Flow Rate @ 20ft. of Head (gpm) | 40 |
| Flow Rate @ 5ft. of Head (gpm) | 75 |
| Frequency (Hz) | 60 |
| Gauge/Conductor | 16/3 |
| Horsepower (HP) | 1/2 |
| Impeller Material | Nylon |
| Max. Diameter Solids (inch) | 1/2 |
| Maximum Head (ft) | 30 |
| Maximum Liquid Temperature (°F) | 200 |
| Min. Sump Pit Dia. (inch) | 18 |
| NEC Cord Designation | SJOOW |
| Off Point (inch) | 2 to 5 |
| On Point (inch) | 7 to 10 |
| Overall Height (inch) | 11-5/32 |
| Rated Voltage (V) | 115 AC |
| Rotation Speed (rpm) | 1750 |
| Switch Actuation | Sensor |
| Switch Electrical Connection | Integral |
| Thermal Protection | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These high-temperature submersible sump pumps transfer hot liquids such as furnace condensate or waste from boiler blowdown. They are also for use in plant washdown sump pits, public-utility underground transformer vaults, and industrial cleaning sump pits.
Feature
Submersible Sump Pump HP 1/2 Rated Voltage 115V AC Hz 60 Hz Amps 8.0 A Switch Actuation Sensor Switch Electrical Connection Integral Off Point 2 to 5 in On Point 7 to 10 in Body Material Cast Iron Impeller Material Nylon Flow Rate @ 5 ft of Head 75.0 gpm Flow Rate @ 10 ft of Head 65 gpm Flow Rate @ 15 ft of Head 60.0 gpm Flow Rate @ 20 ft of Head 40.0 gpm Max Head 30 ft Min Sump Pit Dia 18 in Body Dia 6 49/64 in Overall Height 11 5/32 in Discharge 1-1/2 in FNPTUlasan Produk
