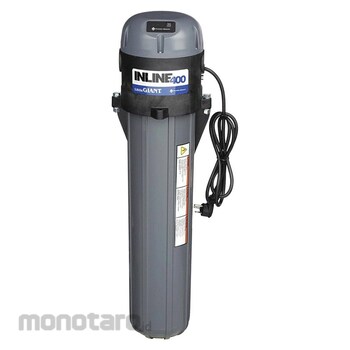

LITTLE GIANT Constant Pressure Booster Pump
#Grup produk P109567037
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Best Efficiency Pressure (psi) | 42 |
| Compatible Discharge Pipe Size (inch) | 1-1/4 |
| Compatible Intake Pipe Size (inch) | 1-1/4 |
| Compatible with Media Type | Water |
| Cord Length (ft) | 6 |
| Discharge Rotation (°) | 90 Increments |
| Discharge Type | NPT |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Duty cycle | Continuous |
| Electrical Connection Type | Plug-In |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 1/3 |
| Impeller Design | Closed |
| Impeller Material | Celcon |
| Includes | Grounding Connector |
| Intake Type | NPT |
| Intake and Discharge Size (inch) | 1-1/4, 1-1/4 |
| Manufacturer Part Number | 92061503 |
| Max. Pressure Boost (psi) | 55 |
| Maximum Feet of Head (ft) | 125 |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Media Temperature (°F) | 120 |
| Maximum RPM | 3600 |
| Maximum Suction Lift (ft) | 5 |
| Minimum Flow Rate (gpm) | 0 (zero) |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Nameplate Voltage (V) | 115 AC |
| Number of Stages | 3 |
| Overall Height (inch) | 8.86 |
| Overall Length (inch) | 29.61 |
| Overall Width (inch) | 7.09 |
| Phase | Single |
| Priming | Manual |
| Pump Housing Material | Plastic |
| Pumping Application | City Water Pressure Boosting; Irrigation System Boosting; Pressurize Water from Cistern Tank; Re-Pressurizing After Filtration |
| Series | INLINE 400 |
| Standards | ANSI 61; cULus Listed; NSF Certified; UL Listed |
| System Pressure (Maximum) (psi) | 100 |
| Tank Type | Pressure Tank Not Included |
| Thermal Overload Protection | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Constant pressure pumps with a motor of less than 1/2 HP produce the lowest possible pressure levels.
Feature
Constant Pressure Booster Pump Phase Single Pump Housing Material Plastic Horsepower 1/3 hp Nameplate Voltage 115V AC Maximum Flow Rate 20 gpm Minimum Flow Rate 0 gpm Maximum Feet of Head 125 ft Pressure Boost (Maximum) 55 psi Tank Type Pressure Tank Not Included Intake Type NPT Compatible Intake Pipe Size 1 1/4 in Compatible Discharge Pipe Size 1 1/4 in Motor Enclosure Totally Enclosed Nonventilated Discharge Type NPT For Use With Potable Systems Yes Amps 6.6 AUlasan Produk
