LIBERTY PUMPS Pompa Celup Elevator
#Grup produk P109566214
Spesifikasi
| UNSPSC | 40151512 |
|---|---|
| Agency Compliance | CSA/UL |
| Alarm Duration | Continuous |
| Alarm Included | Yes |
| Alarm Output | Audible; Visual |
| Amps (A) | 8 |
| Body Material | Cast Iron |
| Cord Length (ft) | 10 |
| Discharge (inch) | 1-1/2 FNPT |
| Duty cycle | Continuous |
| Flow Rate @ 10ft. of Head (gpm) | 55 |
| Flow Rate @ 20ft. of Head (gpm) | 40 |
| Flow Rate @ 30ft. of Head (gpm) | 20 |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 1/2 |
| Impeller Material | Polypropylene |
| Max. Diameter Solids (inch) | 1/2 |
| Maximum Head (ft) | 37 |
| Maximum Liquid Temperature (°F) | 140 |
| Min. Sump Pit Dia. (inch) | 14 |
| Minimum Water Depth (inch) | 14 |
| Off Point | Variable |
| On Point (inch) | 6-3/10 |
| Overall Height (inch) | 13 |
| Rated Voltage (V) | 115 AC |
| Rotation Speed (rpm) | 3450 |
| Shaft Seal Material - Pumps | Carbon; Ceramic; Nitrile Rubber |
| Switch Actuation | Sensor |
| Switch Electrical Connection | Integral |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

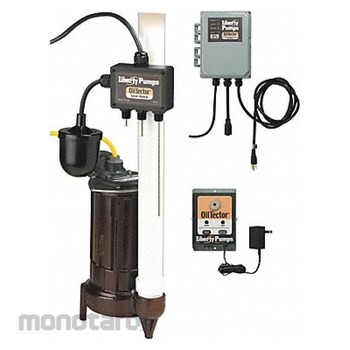

These elevator sump pumps drain water from elevator sump pits and transformer vaults. They have an oil detector that identifies when oil is present. The pump only operates when water is present and stops when oil is sensed. This prevents the pumping of oil into groundwater or sewage systems.
Feature
Elevator Sump Pump with Oil Sensor HP 1/2 Rated Voltage 115V AC Hz 60 Amps 8 A Flow Rate @ 10 ft of Head 55 gpm Flow Rate @ 20 ft of Head 40.0 gpm Flow Rate @ 30 ft of Head 20.0 gpm Max Head 37.0 ft Switch Actuation Sensor Switch Electrical Connection Integral Off Point Variable On Point 6 3/10 in Body Material Cast Iron Impeller Material Polypropylene Shaft Seal Material - Pumps Carbon Ceramic Nitrile Rubber Min Sump Pit Dia 14 in Minimum Water Depth 14 inUlasan Produk
