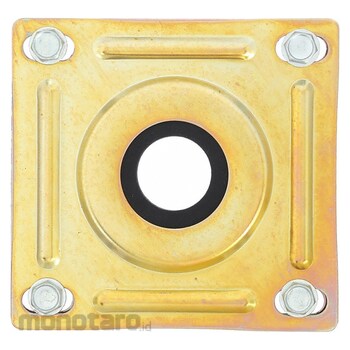

LDI INDUSTRIES Hydraulic Tank Flange
#Grup produk P109565738
Spesifikasi
| UNSPSC | 25172802 |
|---|---|
| For Cut Out Size (inch) | 4.312 |
| Gasket Material | Vegetable Fiber |
| Includes | (4) 5/16\"-18 Thread Forming Screws |
| Includes Mounting Hardware | Yes |
| Overall Height (inch) | 5.5 |
| Overall Length (inch) | 5.25 |
| Overall Thickness (inch) | 0.38 |
| Plate Material | Steel |
| Washer Material | Neoprene Rubber |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Suction flanges attach a suction pipe to a hydraulic tank within a hydraulic system. They create a seal to keep fluids from leaking and keep contaminants out of the tank. Suction flanges also provide access to the suction element without the need to drain the tank. These suction flanges come with 4-bolt top and bottom flanges, a seal, and a grommet required to attach the pipe or tubing to the tank.
Feature
Suction Flange For Pipe Size 1 in For Cut Out Size 4.312 in Plate Material Steel Overall Length 5.25 in Overall Height 5.5 in Overall Thickness 0.38 in Includes (4) 5/16 In.-18 Thread Forming Screws Washer Material Neoprene Rubber Gasket Material Vegetable Fiber Includes Mounting Hardware YesUlasan Produk
