JENNY Air Compressor Pump
#Grup produk P109564191
Spesifikasi
| UNSPSC | 40151601 |
|---|---|
| Bore Diameter (inch) | 2.5 |
| Compressor Type | Piston |
| Construction | Cast Iron |
| Cylinder Material | Cast Iron |
| Flywheel Diameter (inch) | 10-1/8 |
| Flywheel Included | Yes |
| Free Air Flow Rate @ Maximum Pressure (cfm) | 6.7 @ 150psi |
| Groove Section | A |
| Lubrication Required | Yes |
| Lubrication Type | Splash Lubricated |
| Manufacturer Part Number | K-PUMP |
| Maximum Operating Pressure (psi) | 150 |
| Maximum Output Power (hp) | 2 |
| Number of Cylinders | 2 |
| Number of Grooves | 1 |
| Number of Stages | 1 |
| Oil Capacity (fl oz) | 32 |
| Outlet Connection Type | NPT |
| Outlet Size (inch) | 0.5 |
| Overall Depth (inch) | 10 |
| Overall Height (inch) | 13.75 |
| Overall Width (inch) | 11.12 |
| Pump Speed (rpm) | 1200 |
| Rotation | CW |
| Stroke Length (inch) | 2 |
| Sub Brand | Jenny |
| Valve Material | Stainless Steel |
| Valve Type | Disc |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

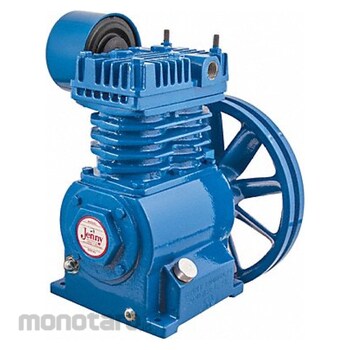

These air compressor pumps replace a pump in a Jenny air compressor.
Feature
Air Compressor Pump Lubrication Type Splash Lubricated Number of Stages 1 Maximum Output Power 2 hp Free Air Flow Rate @ Maximum Pressure 6.7 cfm @ 150 psi Number of Cylinders 2 Maximum Operating Pressure 150 psi Flywheel Diameter 10 1/8 in Flywheel Included Yes Pump Speed 1 200 RPM Compressor Type Piston Construction Cast Iron Groove Section A Number of Grooves 1 Valve Type Disc Valve Material Stainless Steel Cylinder Material Cast Iron Rotation CW Stroke Length 2 inUlasan Produk
