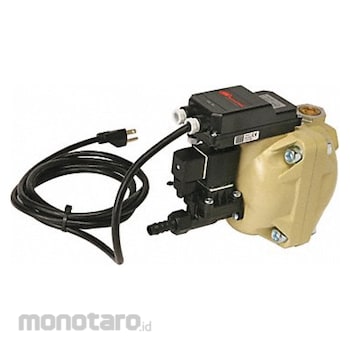

INGERSOLL RAND Zero-Loss Condensate Drain
#Grup produk P109563794
Sebelum PPN:
Rp18.999.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141701 |
|---|---|
| Ball Valve Type | Solenoid |
| Body Material | Aluminium |
| Current (A) | 0.5 |
| Drain Port Gender | Female |
| Drain Port Size (inch) | 1/4 |
| Drain Port Type | NPT |
| Enclosure Rating | NEMA 4 |
| Inlet Gender | Female |
| Inlet Size (inch) | 1/2 |
| Inlet Type | NPT |
| Maximum Operating Pressure (psi) | 233 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Pressure (psi) | 12 |
| Minimum Operating Temperature (°F) | 140 |
| Number of Air Inlets | 1 |
| Outlet Gender | Female |
| Outlet Size (inch) | 1/2 |
| Outlet Type | NPT |
| Overall Depth (inch) | 6-1/2 |
| Phase | Single |
| Voltage (V) | 115 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These zero-loss drains have an electronic control sensor that calculates how long the drain must remain open to evacuate the condensate. Once drained it closes to avoid loss of pressure.
Feature
Zero Loss Condensate Drain Inlet Size 1/2 in Inlet Gender Female Inlet Type NPT Outlet Size 1/2 in Outlet Gender Female Outlet Type NPT Drain Port Size 1/4 in Drain Port Gender Female Drain Port Type NPT Maximum Operating Pressure 233 psi Minimum Operating Pressure 12 psi Number of Air Inlets 1 Voltage 115V AC Maximum Operating Temperature 158 Degrees F Minimum Operating Temperature 140 Degrees F Overall Depth 6 1/2 in Overall Height 4 5/8 in Overall Width 2 9/16 inUlasan Produk
