INA Ball Thrust Bearing
#Grup produk P109562573
Spesifikasi
| UNSPSC | 31171507 |
|---|---|
| Ball Material | Steel |
| Ball Material Grade | 100Cr6 |
| Cage Material | Steel |
| Cage Material Grade | Sheet Steel |
| Lubricant Material | Oil |
| Lubrication Openings | Lubrication Hole |
| Maximum Temperature (°F) | 250 |
| Minimum Temperature (°F) | -20 |
| Race Form | Grooved |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| Washer Material | Steel |
| Washer Material Grade | 100Cr6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

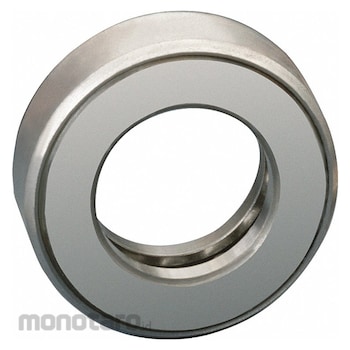

These banded ball thrust bearings ease installation and provide extra protection to the internal bearing components against contaminants. They consist of a housing washer, a shaft washer, and a ball and cage assembly that are banded together as one unit.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Ball Thrust Bearing Ball Material Steel Bearing Industry Number D1 Bore Diameter 1/2 in Cage Material Steel Closure Open Housing Washer Bore 0.531 in Lubricant Material Oil Maximum Speed 7 000 RPM Outside Diameter 1 7/32 in Overall Width 0.563 in Seal Material Not Applicable Seal Type Not Applicable System of Measurement Inch Thrust Bearing Type Banded Ball Thrust Bearing Washer Material Steel Application Industrial Ball Material Grade 100Cr6 Cage Material Grade Sheet SteelUlasan Produk
