IGUS Mounted Plain Bearing
#Grup produk P109562494
Spesifikasi
| UNSPSC | 31171501 |
|---|---|
| Bearing Insert Material | Polymer |
| Bearing Insert Type | Spherical Plain |
| Features | Absolutely Corrosion-Resistant; Compensation of Misalignment Errors; Easy Installation; Maintenance-Free Dry Operation; Time Saving Through Fast Assembly; Very Lightweight |
| Housing Material | Polymer |
| Housing Material Finish | Unfinished |
| Housing Type | Rhombus |
| Lubrication Openings | None |
| Maximum PV (lbs/sq in-fpm) | 8700 |
| Maximum Temperature (°F) | 176 |
| Minimum Temperature (°F) | -22 |
| Resistance Properties | Corrosion Resistant |
| Self Lubricating Bearing | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

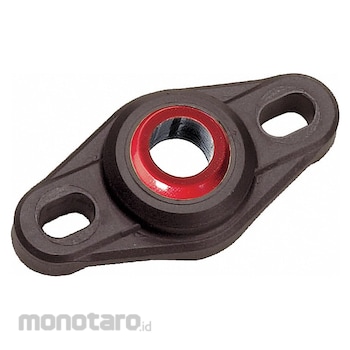

Maintenance-free plastic flange-mount plain bearings resist rust and corrosion. They have a sphered inner ring with a convex outside diameter and an outer ring with a corresponding sphered concave inside surface. These bearings accommodate misalignment between the bearing shaft and housing. They are often used in pharmaceutical and marine applications where they are exposed to chemicals and salt water.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
2 Bolt Flange Bearing Bearing Insert Material Polymer Bearing Insert Type Spherical Plain Bore Diameter 1/4 in Bore Type Cylindrical Closure Open Housing Material Polymer Housing Type Rhombus Lubricant Material Not Applicable Maximum Temperature 176 Degrees F Minimum Temperature -22 Degrees F Number of Mount Holes 2 Overall Height 5/8 in Overall Length 1 21/64 in Overall Width 21/64 in Rolling Element Rows Not Applicable Self Lubricating Bearing Yes Shaft Locking Type NoneUlasan Produk
