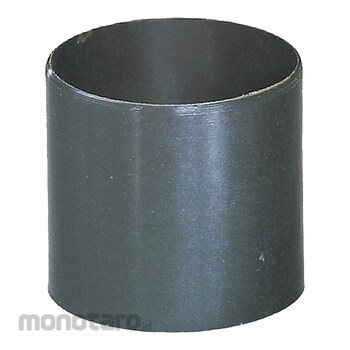

IGUS Dry-Run Plastic Sleeve Bearing
#Grup produk P109562458
Spesifikasi
| UNSPSC | 31171506 |
|---|---|
| Application | Fitness/Physical Therapy Equipment; Furniture/Industrial Design; Model Building |
| Bevel Length (inch) | 0.031 |
| Bore Diameter Tolerance (mm) | +0.000 to +0.021 |
| Color | Dark Red |
| For Environment | Vacuum |
| Lubrication Type | Self Lubricating |
| Maximum PV (lbs/sq in-fpm) | 7700 |
| Maximum Temperature (°F) | 230 |
| Minimum Temperature (°F) | -58 |
| Overall Length (inch) | 1 |
| Plain Bearing Material | Polymer |
| Resistance Properties | Abrasion Resistant; Wear Resistant |
| Standards | ASTM C177; DIN 53452; DIN 53457; DIN 53482; DIN 53495; DIN 53505; DIN 53752; DIN IEC 93; RoHS 2 Certified |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These dry-run plastic sleeve bearings are resistant to dirt and dust. They're for use in environments where contaminants are a concern, such as agriculture machinery, construction equipment, and automotive manufacturing.
Feature
Sleeve Bearing Bore Diameter 5/16 in For Environment Vacuum For Housing Bore Range 0.3747 to 0.3753 in For Shaft Size 0.3106 to 0.3115 in Lubrication Type Self Lubricating Material Group Plastic Maximum Temperature 428 Degrees F Minimum Temperature -40 Degrees F Outside Diameter 3/8 in Overall Length 3/4 in Plain Bearing Material Polymer System of Measurement InchUlasan Produk
