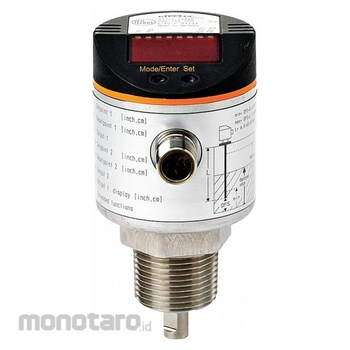

IFM Guided Wave Radar Liquid Level Sensor
#Grup produk P109562351
Spesifikasi
| UNSPSC | 41111931 |
|---|---|
| Accuracy (mm) | ±7 |
| Body Material | Stainless Steel |
| Connection Size (inch) | 3/4 |
| Enclosure Rating | IP67 |
| For Media Type | Oils; Water |
| Manufacturer Part Number | LR3000 |
| Maximum Media Temperature (°F) | 176 |
| Maximum Operating Pressure (psi) | 232 |
| Mounting Orientation | Vertical |
| Nameplate Voltage (V) | 18/30 DC |
| Number of Digital Outputs | 1 |
| Number of analog outputs | 1 |
| Output Wire Configuration | 4-Wire |
| Overall Length (inch) | 2.5 |
| Probe Material | 316 Stainless Steel |
| Probe Type | Rod |
| Process Connection (inch) | 3/4 |
| Product Type | Guided Wave Radar |
| Range (inch) | 63 |
| Standards | IEC 61131-9 CDV |
| Stem Length (inch) | 63 |
| Stem Material | 316 Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
IFM Efector LR Series sensor heads pair with compatible probes and tubes to create a complete, guided-wave, level sensor unit. Sensor heads generate electromagnetic waves that travel down tube-encased probes to measure and monitor liquid levels in containers and tanks.
Feature
Electronic Level Sensor Product Type Guided Wave Radar Connection Size 3/4 in For Media Type Oils Water Body Material Stainless Steel Accuracy +/-7 mm Range 63 in Stem Length 63 in Operating Pressure - Maximum 232 psi Media Temperature - Maximum 176 Degrees F Mounting Orientation Vertical Enclosure Rating IP67 Number of Outputs - Analog 1 Float Diameter 1/4 in Number of Outputs - Digital 1 Float Length Not Applicable Output Wire Configuration 4-Wire Probe Type RodUlasan Produk
