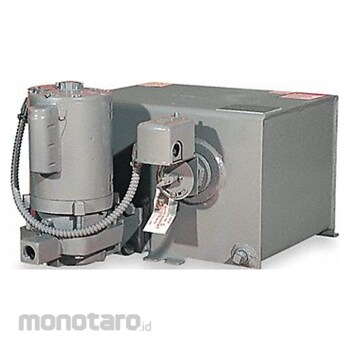

HOFFMAN Condensate Return System
#Grup produk P109562096
Sebelum PPN:
Rp86.999.900 - Rp139.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151512 |
|---|---|
| Body Gasket Material | Carbon; Ceramic |
| Compatible Discharge Pipe Size (inch) | 3/4 |
| Compatible Intake Pipe Size (inch) | 2 |
| Compatible Media Type | Water |
| Discharge Connection Style | NPT |
| Equivalence of Direct Radiation Rating | 12000 |
| For Use With Potable Systems | No |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 1/3 |
| Impeller Material | Bronze |
| Intake Connection Style | NPT |
| Maximum Feet of Head (ft) | 52 |
| Maximum Flow Rate @ 30ft of Head (gpm) | 33 |
| Maximum Flow Rate @ 35ft of Head (gpm) | 30 |
| Maximum Flow Rate @ 40ft of Head (gpm) | 30 |
| Maximum Flow Rate @ 45ft of Head (gpm) | 21 |
| Maximum Flow Rate @ 50ft of Head (gpm) | 12 |
| Maximum Media Temperature (°F) | 200 |
| Maximum RPM | 3500 |
| Motor Enclosure Design | Open Drip-Proof |
| Mounting Position | Vertical |
| Number of Intakes | 1 |
| Overall Height (inch) | 12.94 |
| Overflow Port Pipe Size (inch) | 2 |
| Phase | Single |
| Pump Activation Type | Float Switch |
| Pump Housing Material | Cast Iron |
| Tank Capacity (gal) | 14 |
| Vent Line Port Pipe Size (inch) | 1-1/4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These Hoffman condensate return systems have either a duplex or simplex design. Simplex systems have one circulating pump while duplex systems have two. In duplex systems the pumping alternates between the two pumps to reduce wear on the pumps. They are used for systems with higher condensate return demand.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Condensate Return System Discharge Connection Style NPT Equivalence of Direct Radiation Rating 12 000 Horsepower 1/3 hp Intake Connection Style NPT Maximum Feet of Head 52 ft Maximum Flow Rate @ 30 Feet of Head 33 gpm Maximum Flow Rate @ 40 Feet of Head 30 gpm Maximum Flow Rate @ 50 Feet of Head 12 gpm Maximum Media Temperature 200 Degrees F Pump Mounting Position Vertical Nameplate Voltage 115/230V AC Pump Type Simplex Tank Capacity 14 galUlasan Produk
