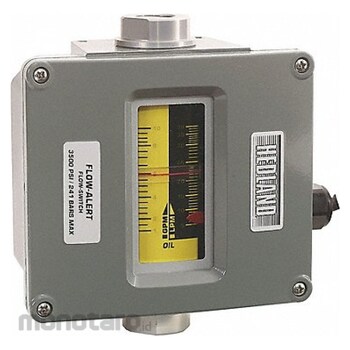

HEDLAND Variable Area Flow Switch
#Grup produk P109561936
Spesifikasi
| UNSPSC | 41112501 |
|---|---|
| Connection Size (inch) | 1/2 |
| Connection Type | FNPT |
| Contact Rating (AC) (A) | 10 @250V |
| Contact Rating (DC) (A) | 0.5 @ 125V DC |
| Flow Rate Range (gpm) | 0.5-5 |
| Flow Switch Type | Piston |
| For Pipe Size (inch) | 1/2 |
| Housing Material | Aluminium |
| Manufacturer Part Number | H601A-005-F1 |
| Maximum Flow Rate (GPM) | 5 |
| Maximum Media Temperature (°F) | 240 |
| Media Temperature Range (°F) | -20 to 240 |
| Min. Flow Rate (gpm) | 0.5 |
| Minimum Media Temperature (°F) | -20 |
| Process Connection (inch) | 1/2 FNPT |
| Set Point Configuration | Adjustable |
| Switch Enclosure | NEMA 12NEMA 13 |
| Switch Position | Normally Closed; Normally Open |
| Switch Type | SPDT |
| Wetted Material | Aluminium |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Variable area flow switches monitor and control oil flow within a system. Switches detect system conditions to turn pumps on or off, open or close flow-control valves, and sound alarms.
Feature
Flow Switch Flow Switch Type Piston For Pipe Size 1/2 in Housing Material Aluminum Connection Size 1/2 in Connection Type FNPT Flow Rate - Minimum 0.5 gpm Flow Rate - Maximum 5 gpm Media Temperature - Minimum -20 Degrees F Media Temperature - Maximum 240 Degrees F Switch Type SPDT Switch Enclosure NEMA 12 NEMA 13 Wetted Material Aluminum Contact Rating (AC) 10 A @ 250V Contact Rating (DC) 0.5 A @ 125V DC Set Point Configuration Adjustable Standards -Ulasan Produk
