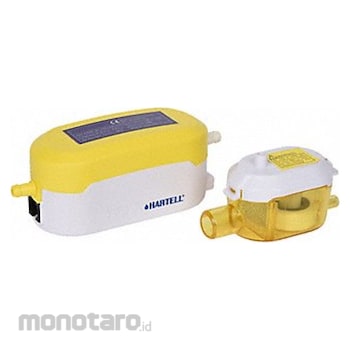

HARTELL Condensate Removal Pump
#Grup produk P109561918
Sebelum PPN:
Rp2.999.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 31160000 |
|---|---|
| Compatible Discharge Pipe Size (inch) | 1/4 |
| Compatible Intake Pipe Size (inch) | 1/4 |
| Cord Length (ft) | 5 |
| Discharge Connection Style | Barbed |
| Electrical Connection Type | Cord with Plug |
| Float Material | Plastic |
| For Use With Potable Systems | No |
| Frequency (Hz) | 50/60 |
| Intake Connection Style | Barbed |
| Maximum Ambient Temperature (°F) | 122 |
| Maximum Feet of Head (ft) | 20 |
| Maximum Media Temperature (°F) | 122 |
| Maximum Operating Pressure (psi) | 11.37 |
| Minimum Ambient Temperature (°F) | 40 |
| Minimum Media Temperature (°F) | 40 |
| Nameplate Voltage (V) | 100/230 AC |
| Number of Intakes | 1 |
| Overall Height (inch) | 2.52 |
| Overall Length (inch) | 6.88 |
| Overall Width (inch) | 10.43 |
| Phase | Single |
| Plenum Rated | No |
| Pump Activation Type | Float Switch |
| Pump Housing Material | Plastic |
| Pump Type | Mini-Split |
| Series | HAR |
| Series Family | HA |
| Tank Material | ABS Plastic |
| Wetted Material | Plastic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Mini-split condensate removal pumps are designed to collect condensate generated by wall-mounted air conditioners. These compact pumps have a small reservoir and tubing that fit inside the air conditioner housing. A mechanical float switch triggers the pump to activate and empty the reservoir outside of the building.
Feature
Condensate Removal Pump Discharge Connection Style Barbed Intake Connection Style Barbed Maximum Feet of Head 20 ft Maximum Flow Rate @ 10 Feet of Head 2.4 gph Maximum Flow Rate @ 15 Feet of Head 2.1 gph Maximum Flow Rate @ 1 Foot of Head 3.2 gph Maximum Flow Rate @ 20 Feet of Head 0 gph Maximum Media Temperature 122 Degrees F Nameplate Voltage 100/230V AC Plenum Rated No Pump Type Mini-Split Series HAR Series Family HA Maximum Flow Rate @ 5 Feet of Head 2.6 gph Amps 0.014 AUlasan Produk
