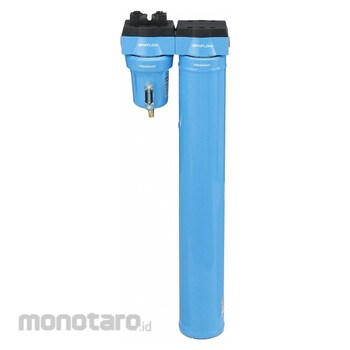

HANKISON Membrane Compressed Air Dryer
#Grup produk P109561574
Spesifikasi
| UNSPSC | 40161507 |
|---|---|
| Air Inlet Size (inch) | 1/2 |
| Air Inlet Type | NPT |
| Air Outlet Size (inch) | 1/2 |
| Body Material | Aluminium |
| Dew Point Temperature (°F) | 40 |
| Drain Type | Automatic |
| Filter Element Compatibility | F02-B-PF/HF |
| Filter Element Life (month) | 6 |
| Filter Included | Grade 5 Coalescing |
| Filter Type | Coalescing |
| Filtered Substance | Oil; Water |
| Finish | Powder Coated |
| Housing Material | Aluminium |
| Includes | Auto Drain; Oil Removal Prefilter |
| Iso Class | 2; 3; 4; 5; 6 |
| Manufacturer Part Number | HMM3-4F |
| Maximum Ambient Temperature (°F) | 150 |
| Maximum Flow Rate (CFM) | 9.7 |
| Maximum Operating Pressure (psi) | 200 |
| Maximum Operating Temperature (°F) | 150 |
| Minimum Flow Rate (cfm) | 2.18 |
| Number of Air Inlets | 1 |
| Number of Air Outlets | 1 |
| Overall Depth (inch) | 4-1/8 |
| Overall Height (inch) | 19-3/4 |
| Overall Width (mm) | 105 |
| Product Weight (kg) | 3 |
| Series | HMM |
| Standards | ISO 7183 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These membrane dryers use more air flow (cfm) than other dryers and are suitable for use in compressed air system applications where a power source is not available.
Feature
Membrane Air Dryer Air Inlet Size 1/2 in Air Inlet Type NPT Maximum Flow Rate 9.7 cfm Maximum Operating Pressure 200 psi Maximum Operating Temperature 150 Degrees F Maximum Ambient Temperature 150 Degrees F Drain Type Automatic ISO Class 2 3 4 5 6 Dew Point 40 Degrees F Overall Width 105 mm Overall Height 19 3/4 in Series HMM Air Outlet Size 1/2 in Body Material Aluminum Features - Filter Element Compatibility F02-B-PF/HFUlasan Produk
