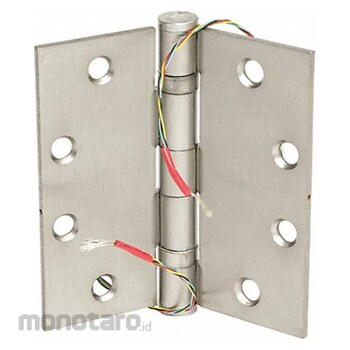

Hager Electrified Hing
#Grup produk P109561459
Spesifikasi
| UNSPSC | 31162403 |
|---|---|
| Bearing Type | Ball |
| Corners | Square |
| Door Leaf Height (inch) | 4-1/2 |
| Door Leaf Thickness (inch) | 0.134 |
| Door Leaf Width (inch) | 1-25/32 |
| Finish | Satin Chrome |
| Frame Leaf Height (inch) | 4-1/2 |
| Frame Leaf Thickness (inch) | 0.134 |
| Frame Leaf Width (inch) | 1-25/32 |
| Hardware | Included |
| Holes | With |
| Holes per Leaf | 4 |
| Ligature Resistant | No |
| Load Capacity (lbs) | 150 |
| Material | Brass |
| Mounting | Mortise |
| Number of wires | 4 |
| Orientation | Non Handed |
| Pin Dia. (inch) | 5/8 |
| Pin Material | Steel |
| Pin Type | Nonremovable |
| Range of Motion (°) | 180 |
| Required Door Thickness (inch) | 1-3/4 |
| Standards | ANSI A8112 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Electrified Hinge Brass Material Satin Chrome Finish 150 lb Load Capacity With Holes 4 Holes per Leaf No Ligature Resistant 180 Degrees Range of Motion Orientation Non Handed 4 1/2 in Door Leaf Height 4 1/2 in Frame Leaf Height 1 25/32 in Door Leaf Width 1 25/32 in Frame Leaf Width 0.134 in Door Leaf Thickness 0.134 in Frame Leaf Thickness 1-3/4 in Required Door Thickness Mortise Mounting 4 Number of Wires 5/8 in Pin Dia Steel Pin Material Nonremovable Pin TypeUlasan Produk
