GROZ Regulator
#Grup produk P109561219
Spesifikasi
| UNSPSC | 27131603 |
|---|---|
| Adjustment Location | Top |
| Adjustment Mechanism | Knob |
| Adjustment Mechanism Material | Acetal |
| Air Flow Direction | Left to Right |
| Air Inlet Gender | Female |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Type | NPT |
| Body Material | Aluminium |
| Connection Style | Air Line |
| Differential Pressure Indicator Included | No |
| Drain Included | Yes |
| Drain Type | Semi-Automatic |
| Filter Element Material | Bronze |
| Filter Rating (micron) | 40 |
| Filter Type | Particulate |
| For Fluid Type | Compressed Air |
| For Substance Type | Air |
| Includes | (1) Filter-Regulator Combination |
| Iso Class | 6 |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Regulated Pressure (psi) | 145 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Regulated Pressure (psi) | 7 |
| Number of Air Inlets | 1 |
| Number of Air Outlets | 1 |
| Pressure Control Type | Relieving |
| Pressure Drop (psi) | 17 |
| Pressure Gauge Included | No |
| Pressure Gauge Port Gender | Female |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Standards | RoHS Compliance |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

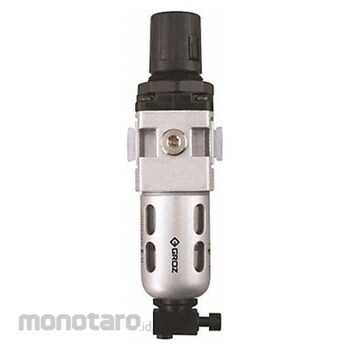

Compressed air filter/regulators combine the function of a filter and a regulator in a single device. They are a component of a GROZ FRL system.
Feature
Filter-Regulator Filter Bowl Material Polycarbonate Air Inlet Size 1/4 in Air Inlet Type NPT Maximum Flow Rate 20 cfm Filter Rating 40 micron Filter Type Particulate Maximum Operating Pressure 145 psi Drain Type Semi-Automatic Pressure Gauge Included No Body Material Aluminum Overall Width 1 9/16 in Series Light Duty Adjustment Location Top Adjustment Mechanism Knob Adjustment Mechanism Material Acetal Air Flow Direction Left to Right Air Inlet Gender FemaleUlasan Produk
