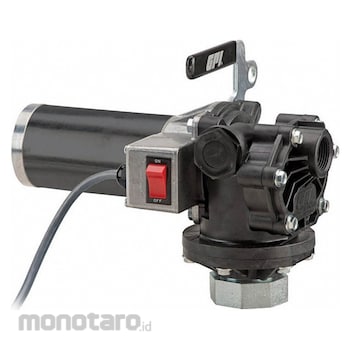

GPI Electric Drum Pump
#Grup produk P109560876
Sebelum PPN:
Rp22.999.900 - Rp25.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151524 |
|---|---|
| Adapter Connection Type | MNPT |
| Adapter Material | Aluminium |
| Agency Compliance | cULus |
| Compatible Chemicals | Anti-Freeze; Hydraulic Fluid; Oil |
| Cord Length (ft) | 3 |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | FNPT |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Duty Cycle (minute) | 30 On/30 Off |
| Explosion Proof | Yes |
| Food Grade | No |
| For Media Type | Anti-Freeze; Hydraulic Fluid; Oil |
| Frequency (Hz) | 60 |
| Height Above Container (inch) | 12 |
| Hose Cover Material | Nitrile |
| Hose Length (ft) | 8 |
| Hose Outside Dia. (inch) | 3/4 |
| Hose Tube Material | Nitrile |
| Housing Material - Pumps | Aluminium |
| Includes | Adjustable Suction Pipe; Ball Valve Nozzle; Dispensing Hose; Street Elbow |
| Includes Bung Adapter | No |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | Yes |
| Includes Suction Tube | Yes |
| Max. Outlet Pressure (psi) | 50 |
| Max. Viscosity (SUS) | 813 |
| Maximum Flow Rate (GPM) | 4 |
| Maximum Fluid Temperature (°F) | 140 |
| Metered | No |
| Minimum Fluid Temperature (°F) | 0 (zero) |
| Motor Enclosure | Explosion Proof |
| Motor HP (HP) | 1/5 |
| Motor RPM (rpm) | 1800 |
| Mount Type | Bung |
| Nominal Voltage (V) | 110 AC |
| Nozzle Material | Thermoplastic |
| Nozzle Operation | Manual |
| Number of Phases | 1 |
| Power Source | Electric |
| Pump Connection Type | FNPT |
| Rated Voltage (V) | 12 DC |
| Runs Dry | No |
| Seal Material | Buna-N |
| Self Priming | Yes |
| Spout Material | Poly |
| Suction Tube Length (inch) | 40 |
| Suction Tube Material | Polypropylene |
| Suction Tube OD (inch) | 1 |
| Thermal Protection | Yes |
| Variable Speed | No |
| for Container Size (gal) | 10; 500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Agricultural electric drum pumps withstand contact with agricultural products such as fertilizers, herbicides, pesticides, and fungicides. They typically run on DC voltage so they can be powered by farm equipment batteries for use in the field or remote locations where an electrical outlet is not available. They're commonly used when dispensing, transferring, and applying large amounts of agricultural chemicals in farming, gardening, and landscaping applications.
Feature
Electric Operated Drum Pump Max Head Pressure 16 psi Max Oil Flow 12 gpm Max Outlet Pressure 6 psi For Use With GPI 118000-1 P-120H-2UR Rated Voltage 12V DC Pump Connection ID 1 in Cord Length 20 ft Includes Bung Adapter No Runs Dry Yes Power Source Electric Variable Speed No Includes Discharge Hose No Self-Priming YesUlasan Produk
