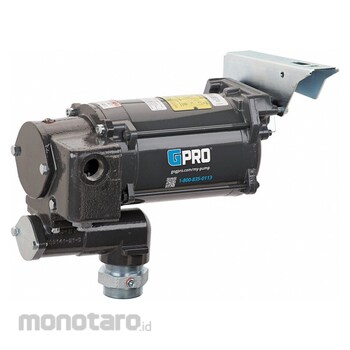

GPI AC-Powered Fuel Transfer Pump
#Grup produk P109560812
Sebelum PPN:
Rp56.999.900 - Rp57.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151532 |
|---|---|
| Agency Compliance | ATEX; Class I Div 1; cULus; IECEx |
| Bung Adapter Connection Type | MNPT |
| Bung Adapter Material | Aluminium |
| Bung Connection Diameter (inch) | 2 |
| Discharge Connection Type | FNPT |
| Discharge Hose Size | Not Included |
| Duty Cycle (minute) | 30 On/30 Off |
| Explosion Proof | Yes |
| For Media Type | AvgasDieselGasolineJet A-1Kerosene |
| Frequency (Hz) | 60 |
| Full Load Current (A) | 9.8 |
| Height Above Container (inch) | 15 |
| Housing Finish | Powder Coated |
| Housing Material | Cast Iron |
| Includes | Pump; Tank Adapter |
| Includes Bung Adapter | Yes |
| Includes Spout | No |
| Includes Suction Tube | No |
| Max. Outlet Pressure (psi) | 25 |
| Max. Viscosity (SUS) | 50 |
| Maximum Flow Rate (GPM) | 35 |
| Maximum Fluid Temperature (°F) | 125 |
| Maximum Head (ft) | 15 |
| Minimum Fluid Temperature (°F) | -20 |
| Motor Enclosure | Explosion Proof |
| Motor HP (HP) | 3/4 |
| Motor Speed (rpm) | 1725 |
| Mount Type | Bung |
| Nozzle type | Not Included |
| Number of Phases | 1 |
| Overall Length (inch) | 17 |
| Power Source | Electric |
| Pump Connection Type | FNPT |
| Pump Kit Type | Pump Only |
| Rated Voltage (V) | 230 AC |
| Runs Dry | No |
| Seal Material | Buna-N |
| Self Priming | Yes |
| Thermal Protection | Yes |
| Variable Speed | No |
| for Container Size (gal) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Bung-mount AC-powered fuel transfer pumps attach to tanks and drums with 2" bung connections. They move fuel between containers and are used for refueling equipment on job sites.
Peringatan
Produk beroperasi pada tegangan 115 volt AC, maka akan memerlukan transformator/trafo atau adaptor yang sesuai untuk mengubah tegangan listrik menjadi 115 volt AC. Tanpa adaptor atau transformator yang sesuai, penggunaan barang elektronik dengan tegangan 115 volt AC di Indonesia dapat menyebabkan kerusakan pada perangkat tersebut. Oleh karena itu, penting untuk memeriksa spesifikasi teknis barang sebelum menggunakannya di negara dengan tegangan listrik yang berbeda.Feature
Fuel Transfer Pump Hose Inside Dia Not Applicable Max Outlet Pressure 25 psi For Use With Diesel Gasoline Kerosene Rated Voltage 230V AC Suction Tube OD Not Applicable Hose Length Not Applicable Suction Tube Length Not Applicable Cord Length Not Applicable Includes Bung Adapter Yes Runs Dry No Nozzle Operation Not Applicable Thermal Protection Yes Frequency (Hz) 60 Hz Power Source Electric Variable Speed No Includes Discharge Hose No Self-Priming YesUlasan Produk
