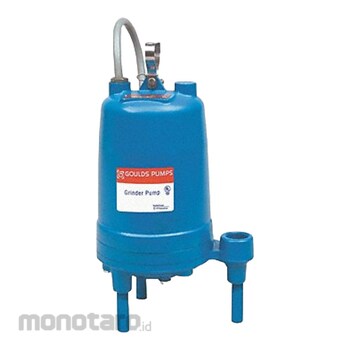

GOULDS WATER TECHNOLOGY Sewage Grinder Pump
#Grup produk P109560715
Sebelum PPN:
Rp66.999.900 - Rp75.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Amps (A) | 15 |
|---|---|
| Body Dia. (inch) | 11-1/4 |
| Body Material | Cast Iron |
| Cord Length (ft) | 20 |
| Discharge (inch) | 1-1/4 FNPT |
| Duty cycle | Continuous |
| Flow Rate @ 15ft. of Head (gpm) | 41 |
| Flow Rate @ 20ft. of Head (gpm) | 41 |
| Flow Rate @ 60ft. of Head (gpm) | 35 |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 2 |
| Maximum Head (ft) | 101 |
| Maximum Liquid Temperature (°F) | 104 |
| Min. Sump Pit Dia. (inch) | 24 |
| Motor Type | Capacitor Start |
| Overall Height (inch) | 18-1/2 |
| Overall Length (inch) | 11-1/4 |
| Phase - Pumps | 1 |
| Rotation Speed (rpm) | 3450 |
| Thermal Protection | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These general purpose single-phase 200 to 240V sewage grinder pumps use a higher voltage that allows for larger motors that require less current than lower-voltage motors. They shred large particles into small fragments so the waste can be pumped into a sewage system.
Feature
Grinder Pump HP 2 hp Rated Voltage 208/230V AC Hz 60 Phase - Pumps 1 Amps 15 A Motor Type Capacitor Start Body Material Cast Iron Impeller Material Bronze Shaft Seal Material - Pumps Buna-N Silicon Carbide Stainless Steel Switch Actuation No Switch Included Switch Electrical Connection No Switch Included Off Point 6 1/2 in On Point 18 in Flow Rate @ 10 ft of Head 42 gpm Flow Rate @ 15 ft of Head 41 gpm Flow Rate @ 20 ft of Head 41 gpm Flow Rate @ 40 ft of Head 39 gpmUlasan Produk
