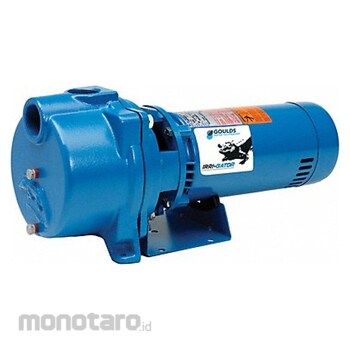

GOULDS WATER TECHNOLOGY Self Priming Sprinkler Pump
#Grup produk P109560672
Sebelum PPN:
Rp20.999.900 - Rp45.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Case Pressure (Maximum) (psi) | 125 |
| Compatible Discharge Pipe Size (inch) | 1-1/2 |
| Compatible Intake Pipe Size (inch) | 1-1/2 |
| Compatible with Media Type | Clear Water Only |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty cycle | Continuous |
| For Use With Potable Systems | No |
| Frequency (Hz) | 60 |
| Impeller Material | Noryl |
| Intake and Discharge Size (inch) | 1-1/2, 1-1/2 |
| Maximum Media Temperature (°F) | 140 |
| Maximum RPM | 3500 |
| Maximum Suction Lift (ft) | 25 |
| Minimum Feet Head (ft) | 5 |
| Motor Enclosure | Open Dripproof |
| Overall Height (inch) | 9.25 |
| Overall Width (inch) | 8.25 |
| Priming | Self-Priming |
| Pump Housing Material | Cast Iron |
| Pumping Application | Air Conditioning Systems; De-Watering; Heat Pumps; Irrigation; Lawn Sprinkling; Water Transfer |
| Seal Material | Buna-N; Carbon; Ceramic |
| Series | GT |
| Solid Diameter (Maximum) (inch) | 0.06 |
| Specific Gravity (Maximum) | 1 |
| Standards | FDA Compliant |
| Wetted Material | Buna-N; Carbon; Cast Iron; Ceramic; Lexan; Noryl |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Self-priming sprinkler pumps with a motor between 1-1/2 and 3 HP achieve higher head and flow rates than pumps with lower HP.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Sprinkler Pump Phase Single Pump Housing Material Cast Iron Horsepower 3 hp Nameplate Voltage 240V AC Suction Lift (Maximum) 25 ft Flow Rate @ 10 psi 110 gpm Flow Rate @ 20 psi 105 gpm Maximum Feet of Head 129 ft Shut Off Pressure (Maximum) 56 psi Compatible Intake Pipe Size 1 1/2 in Compatible Discharge Pipe Size 1 1/2 in Intake Type NPT Motor Enclosure Open Dripproof Flow Rate @ 30 psi 92 gpm Flow Rate @ 40 psi 73 gpm Priming Self-Priming Best Efficiency Flow 70 gpmUlasan Produk
