GOULDS WATER TECHNOLOGY Pompa Celup Air Kotor
#Grup produk P109560496
Sebelum PPN:
Rp29.999.900 - Rp44.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151510 |
|---|---|
| Agency Compliance | CSA C22.2 108; UL 778 |
| Alarm Included | No |
| Body Dia. (inch) | 11-3/4 |
| Body Material | Cast Iron |
| Cord Length (ft) | 20 |
| Discharge (inch) | 2 FNPT |
| Duty cycle | Continuous |
| Frequency (Hz) | 60 |
| Impeller Material | Cast Iron |
| Max. Diameter Solids (inch) | 3/4 |
| Maximum Liquid Temperature (°F) | 140 |
| Min. Sump Pit Dia. (inch) | 18 |
| Minimum Water Depth (inch) | 18 |
| Overall Height (inch) | 16 |
| Phase - Pumps | 1 |
| Rotation Speed (rpm) | 3450 |
| Shaft Seal Material - Pumps | Silicon Carbide; Nitrile Rubber; Stainless Steel |
| Switch Actuation | No Switch Included |
| Switch Electrical Connection | No Switch Included |
| Thermal Protection | Thermal Protection |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

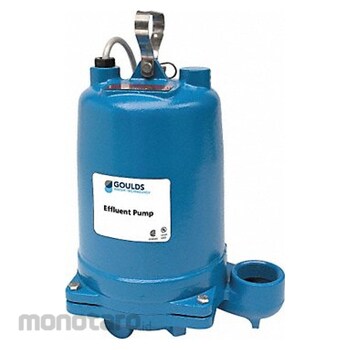

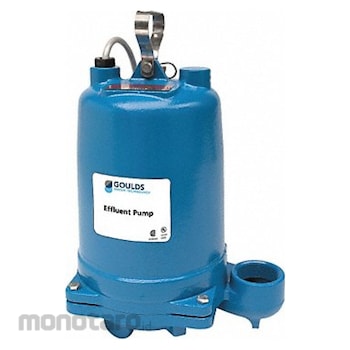

These 110 to 120V effluent pumps are used to drain treated water containing small solids from septic tanks and out to a drain field. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Effluent Pump HP 1/2 Rated Voltage 120V AC Hz 60 Hz Phase - Pumps 1 Amps 14.5 Body Material Cast Iron Impeller Material Cast Iron Shaft Seal Material - Pumps Nitrile Rubber Silicon Carbide Stainless Steel Switch Actuation No Switch Included Switch Electrical Connection No Switch Included Flow Rate @ 10 ft of Head 78 gpm Flow Rate @ 15 ft of Head 70 gpm Flow Rate @ 20 ft of Head 60 gpm Flow Rate @ 40 ft of Head 10 gpm Max Head 46 ft Min Sump Pit Dia 18 inUlasan Produk
