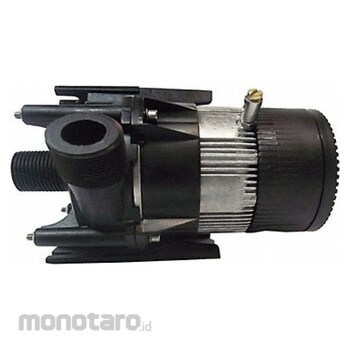

GOULDS WATER TECHNOLOGY Chemical-Resistant Straight Centrifugal Pump
#Grup produk P109560478
Sebelum PPN:
Rp6.199.900 - Rp7.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Discharge Pipe Size (inch) | 3/4 |
|---|---|
| Discharge Port (inch) | 3/4 |
| Duty cycle | Continuous |
| Flow Rate (Minimum) (gpm) | 1 |
| Frequency (Hz) | 60 |
| Horsepower (Maximum) (HP) | 1/25 |
| Impeller Design | Semi-Open |
| Includes | Power Cord |
| Intake Pipe Size (inch) | 3/4 |
| Maximum Media Temperature (°F) | 140 |
| Motor Type | Spherical |
| Overall Length (inch) | 6 |
| Phase | Single |
| Suction Port (inch) | 3/4 |
| Viscosity (Maximum) (cps) | 30 |
| Volute Material | Noryl |
| Wetted Material | 316 Stainless Steel; Carbon; EPDM; Noryl; Viton |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Noryl housing chemical-resistant centrifugal pumps are made of plastic that is highly resistant to chemicals. These pumps only handle some solvents and should not be used to transfer fuel or oil.
Feature
Centrifugal Pump Discharge Pipe Size 3/4 in Feet of Head (Maximum) 18.7 ft Flow Rate (Maximum) 11.6 gpm Horsepower (Maximum) 1/25 hp Housing Material Aluminum Noryl Impeller Design Semi-Open Impeller Material 316 Stainless Steel Nylon Intake Pipe Size 3/4 in Media Temperature (Maximum) 140 Degrees F Phase Single Shut Off Pressure (Maximum) 29 psi Viscosity (Maximum) 30 cps Flow Rate @ 10 ft of Head (Maximum) 8 gpm Flow Rate @ 15 ft of Head (Maximum) 5.5 gpmUlasan Produk
