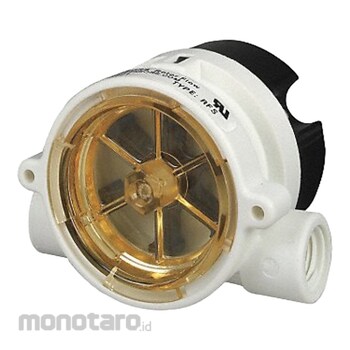

GEMS SENSORS Window-Style Sight Glass Flow Indicator
#Grup produk P109560256
Sebelum PPN:
Rp7.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 39121538 |
|---|---|
| Connection Type | FNPT |
| Contact Rating (AC) (mA) | 45 @115V (No Load); 95 @115V (Load - Relay Energized) |
| Contact Rating (DC) (mA) | 20 @ 24V |
| Filter Rating (micron) | 150 |
| Flow Switch Type | Hall Effect |
| Minimum Ambient Temperature (°F) | -20 |
| Minimum Media Temperature (°F) | -20 |
| Overall Height (inch) | 2.4 |
| Set Point Configuration | Adjustable |
| Standards | CE Certified; UL Listed |
| Switch Position | Normally Closed; Normally Open |
| Switch Type | SPDT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flow sights with remote output send signals to alarms, warning lights, or programmable logic controllers (PLC) when media starts or stops flowing. These inline devices use impellers or rotors to visually represent the flow of media.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Liquid Flow Switch Flow Switch Type Hall Effect Housing Material Polypropylene Connection Size 1/4 in Connection Type FNPT Flow Rate - Minimum 0.5 gpm Flow Rate - Maximum 5 gpm Media Temperature - Minimum -20 Degrees F Media Temperature - Maximum 180 Degrees F Switch Type SPDT Filter Rating - Maximum 150 micron Wetted Material Buna-N Ceramic Polypropylene Polysulfone Phase - Contact Rating (AC) 45 mA @ 115V (No Load) 95 mA @ 115V (Load - Relay Energized)Ulasan Produk
