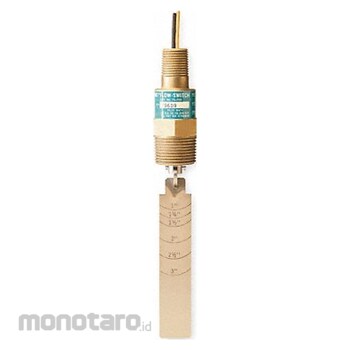

GEMS SENSORS Paddle Flow Switch
#Grup produk P109560195
Spesifikasi
| UNSPSC | 39121538 |
|---|---|
| Connection (inch) | 1 NPT |
| Connection Size (inch) | 1 |
| Connection Type | NPT |
| Contact Rating (DC) (V) | 20 |
| Flow Rate (Maximum) (gpm) | 52 |
| Flow Rate (Minimum) (gpm) | 15 |
| Flow Rate Range (gpm) | 15-52 |
| Flow-Switch Type | Paddle |
| For Pipe Size (inch) | 1-1/2 |
| Hazardous Location Rating | Class I, Div 2, Group A, B, C, D |
| Housing/Body Material | Brass |
| Manufacturer Part Number | FS-550, 29609 |
| Maximum Ambient Temperature (°F) | 300 |
| Maximum Media Temperature (°F) | 300 |
| Media Temperature Range (°F) | -30 to 300 |
| Minimum Ambient Temperature (°F) | -30 |
| Minimum Media Temperature (°F) | -30 |
| Overall Height (inch) | 8.9 |
| Overall Width (inch) | 1 |
| Set Point Configuration | Fixed |
| Standards | CE Certified; CSA Certified; FM Approved; RoHS; UL Listed |
| Switch Position | Normally Closed; Normally Open |
| Switch Type | SPDT |
| Wetted Material | 316 Stainless Steel; Brass; Ceramic; PTFE |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These switches detect and control the flow of compatible liquids traveling through a system in hazardous locations. Insertion-style switches penetrate perpendicularly into a pipe segment within a system and, in most cases, can be installed onto an active line, unlike panel-mounted or inline flowmeters.
Feature
Liquid Flow Switch Flow Switch Type Paddle For Pipe Size 1 1/2 in Housing Material Brass Connection Size 1 in Connection Type NPT Flow Rate - Minimum 15 gpm Flow Rate - Maximum 52 gpm Media Temperature - Minimum -30 Degrees F Media Temperature - Maximum 300 Degrees F Switch Type SPDT Wetted Material 316 Stainless Steel Brass Ceramic PTFE Phase - Contact Rating (DC) 20 V Set Point Configuration Fixed Standards CE Certified CSA Certified FM Approved RoHS UL ListedUlasan Produk
