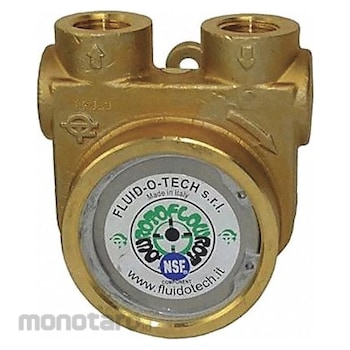

FLUID-O-TECH Vane Pump Head
#Grup produk P109559214
Sebelum PPN:
Rp2.699.900 - Rp5.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41105109 |
|---|---|
| Body Material | Brass |
| Compatible Motor Frame | 48Y NEMA; 56C NEMA; M71; M80 IEC |
| Max. Feet of Head (psi) | 240 |
| Max. Viscosity (CPS) | 150 |
| Maximum Operating Pressure (psi) | 290 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°F) | 23 |
| Mounting | Carbonator Mount |
| Mounting Type | Carbonator Clamp |
| NSF 169 Listed | Yes |
| Operating Temperature Range (°F) | 23 to 158 |
| Seal Material | Buna-N |
| Shaft (inch) | 1/8 Stainless Steel |
| Shaft Combined | 1/8inch Stainless Steel |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter (inch) | 1/8 |
| Standards | NSF |
| Vane Material | Carbon |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Low lead brass housing vane pump heads transfer water-based liquids, potable water, and are highly corrosion-resistant.
Feature
Rotary Vane Pump Flow Rate - Maximum 90 gph Feet of Head - Maximum 240 psi Mounting Type Carbonator Clamp Compatible Motor Frame 48Y NEMA 56C NEMA M71 M80 IEC Media Intake Connection Size 3/8 in Media Intake Connection Type FNPT Discharge Connection Size 3/8 in Discharge Connection Type FNPT Vane Material Carbon Includes Filter Yes Filter Rating - Maximum 75 micron For Media Type Moderate Aggressive Liquid Water NSF 169 Listed Yes Operating Pressure - Maximum 290 psiUlasan Produk
