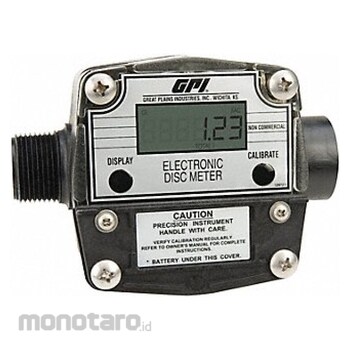

FLOMEC Nutating Disc Flowmeter & Totalizer
#Grup produk P109558914
Spesifikasi
| UNSPSC | 41112501 |
|---|---|
| Accuracy (%) | ±2 |
| Compatible Flow Material | Water |
| Connection Size (inch) | 1/2 |
| Connection Type | FNPT |
| Display Type | LCD |
| Flow Rate (gpm) | 2-20 |
| Flowmeter Type | Turbine |
| Fluid Connection (inch) | 1/2 FNPT |
| Housing Material | PBT |
| Includes Totalizer | Yes |
| Manufacturer Part Number | FM300H/R |
| Max. Viscosity (SUS) | 463 |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Media Temperature (°F) | 130 |
| Maximum Operating Pressure (psi) | 50 |
| Media Temperature Range (°F) | 15 to 130 |
| Min. Flow Rate (gpm) | 2 |
| Minimum Media Temperature (°F) | 15 |
| Mounting Location | Inline |
| O-Ring Materials | Viton |
| Output Type (mA) | 4-20 |
| Overall Length (inch) | 6 |
| Product Type | Flow Meter |
| Rotor Material | PBT |
| Seal Material | Viton |
| Standards | CE Certified |
| Sub Brand | FM-300HR Series |
| Unit of Measure | Gallons |
| Wetted Material | 304 Stainless Steel; Ferrite; PBT; Viton |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Nutating disc totalizers for chemicals measure the total volume of chemically compatible liquids moved by a system. These totalizers provide accurate and repeatable measurements of low-viscosity liquids in low-flow rate applications.
Feature
Electronic Flowmeter Product Type Flow Meter Flowmeter Type Turbine Accuracy +/-2 Percent Connection Size 1/2 in Connection Type FNPT Compatible Flow Material Water Media Temperature - Maximum 130 Degrees F Media Temperature - Minimum 15 Degrees F Viscosity - Maximum 463 SUS Housing Material PBT Rotor Material PBT O-Ring Material Viton Seal Material Viton Wetted Material 304 Stainless Steel Ferrite Viton PBT Standards CE Certified Unit Of Measure Gallons Output Type 4-20 mAUlasan Produk
