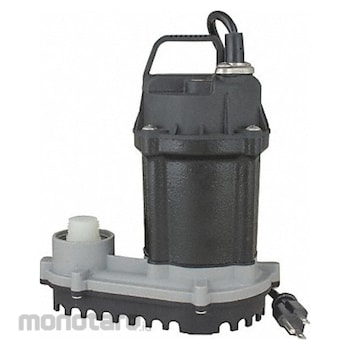

FLINT WALLING Pompa Celup Air Kotor
#Grup produk P109558792
Spesifikasi
| UNSPSC | 40151513 |
|---|---|
| Agency Compliance | CSA |
| Alarm Included | No |
| Amps (A) | 4 |
| Base Material | Plastic |
| Body Dia. (inch) | 8 |
| Body Material | Cast Iron |
| Cord Length (ft) | 10 |
| Discharge (inch) | 1-1/2 FNPT |
| Duty cycle | Continuous |
| Flow Rate @ 10ft. of Head (gpm) | 30 |
| Flow Rate @ 15ft. of Head (gpm) | 22 |
| Flow Rate @ 20ft. of Head (gpm) | 11 |
| Flow Rate @ 5ft. of Head (gpm) | 37 |
| Frequency (Hz) | 60 |
| Gauge/Conductor | 18/3 |
| Horsepower (HP) | 1/6 |
| Impeller Material | Thermoplastic |
| Manufacturer Part Number | ECP062S |
| Max. Diameter Solids (inch) | 3/8 |
| Maximum Head (ft) | 23 |
| Maximum Liquid Temperature (°F) | 104 |
| Min. Sump Pit Dia. (inch) | 12 |
| NEC Cord Designation | SJTOOW |
| Overall Height (inch) | 11 |
| Rated Voltage (V) | 120 AC |
| Rotation Speed (rpm) | 3450 |
| Switch Actuation | Sensor |
| Switch Electrical Connection | Integral |
| Thermal Protection | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. Pumps have a painted or powder-coated finish to protect the body from corrosion.
Feature
Submersible Sump Pump HP 1/6 Rated Voltage 120V AC Hz 60 Hz Amps 4 A Switch Actuation Sensor Switch Electrical Connection Integral Body Material Cast Iron Impeller Material Thermoplastic Flow Rate @ 5 ft of Head 37 gpm Flow Rate @ 10 ft of Head 30 gpm Flow Rate @ 15 ft of Head 22 gpm Flow Rate @ 20 ft of Head 11 gpm Max Head 23 ft Min Sump Pit Dia 12 in Body Dia 8 in Overall Height 11 in Discharge 1 1/2 in FNPT Max Diameter Solids 3/8 inUlasan Produk
