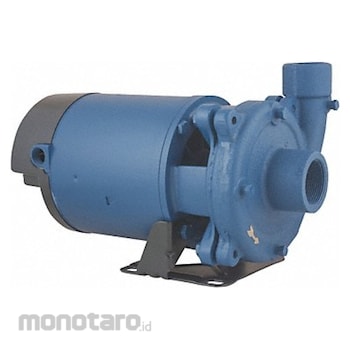

FLINT WALLING Straight Centrifugal Pump
#Grup produk P109558774
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Compatible Discharge Pipe Size (inch) | 1-1/4 |
| Compatible Intake Pipe Size (inch) | 1-1/2 |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty cycle | Continuous |
| For Use With Potable Systems | Yes |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 1-1/2 |
| Impeller Material | Brass |
| Manufacturer Part Number | CJ103153T |
| Maximum Feet of Head (ft) | 100 |
| Maximum Flow Rate @ 100ft of Head (gpm) | 0 (zero) |
| Maximum Flow Rate @ 30ft of Head (gpm) | 95 |
| Maximum Flow Rate @ 40ft of Head (gpm) | 90 |
| Maximum Flow Rate @ 50ft of Head (gpm) | 86 |
| Maximum Flow Rate @ 60ft of Head (gpm) | 78 |
| Maximum Flow Rate @ 70ft of Head (gpm) | 66 |
| Maximum Flow Rate @ 80ft of Head (gpm) | 50 |
| Maximum Flow Rate @ 90ft of Head (gpm) | 31 |
| Maximum RPM | 3450 |
| Maximum Suction Lift (ft) | 15 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Nameplate Voltage (V) | 208-230/460 AC |
| Phase | Three |
| Priming | Manual |
| Pump Housing Material | Cast Iron |
| Required Net Positive Suction Head (psi) | 10 |
| Seal Material | Silicon Carbide |
| Series | TEFC |
| Wetted Material | Brass; Cast Iron |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Straight centrifugal pumps with motors between 1 and 1-1/2 HP achieve higher head and flow rates than pumps with a lower HP motor.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Centrifugal Pump Phase Three Pump Housing Material Cast Iron Horsepower 1 1/2 hp Nameplate Voltage 208-230/460V AC Flow Rate @ 40 ft of Head (Maximum) 90 gpm Flow Rate @ 60 ft of Head (Maximum) 78 gpm Flow Rate @ 80 ft of Head (Maximum) 50 gpm Maximum Feet of Head 100 ft Compatible Intake Pipe Size 1 1/2 in Intake Type NPT Compatible Discharge Pipe Size 1 1/4 in Discharge Type NPT Motor Enclosure Totally Enclosed Fan Cooled Flow Rate @ 30 ft of Head (Maximum) 95 gpmUlasan Produk
