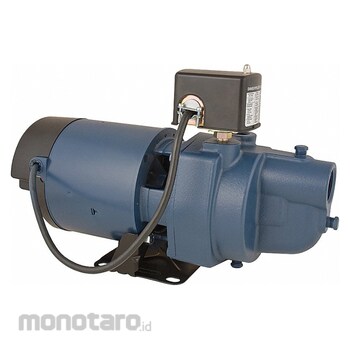

FLINT WALLING Jet Pump for Shallow Well
#Grup produk P109558756
Spesifikasi
| UNSPSC | 40151511 |
|---|---|
| Discharge (inch) | 3/4 NPT |
| Ejector Included | Yes |
| Includes | Pressure Switch |
| Inlet (inch) | 1-1/4 NPT |
| Max. Case Pressure (psi) | 150 |
| Maximum Suction Lift (ft) | 25 |
| Overall Height (inch) | 10-3/5 |
| Overall Length (inch) | 19-1/2 |
| Overall Width (inch) | 11 |
| Rated Voltage (V) | 115/230 AC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These shallow-well jet pumps supply water from wells up to 25-ft. deep and eliminate the need to connect to a municipal water source. They are mounted above ground for maintenance and repair compared to submersible well pumps that are installed in the well and need to be removed from the well for inspection. Pumps are not subject to pump twisting found in submersible pumps that causes them to strike against and damage the sides of the well casing. They are connected to an ejector, tank, and control panel to automatically supply water as needed.
Feature
Shallow Well Jet Pump HP 1/2 hp Rated Voltage 115/230V AC Amps 8.6/4.3 Ejector Included Yes Flow Rate @ 10 ft Lift @ 30 PSI 9.3 gpm Flow Rate @ 10 ft Lift @ 40 PSI 7.8 gpm Max Suction Lift 25 ft Inlet 1-1/4 in NPT Discharge 3/4 in NPT Max Case Pressure 150 psi Shut Off Pressure 60 psi Overall Length 19 1/2 Overall Width 11 Overall Height 10 3/5 Includes Pressure SwitchUlasan Produk
