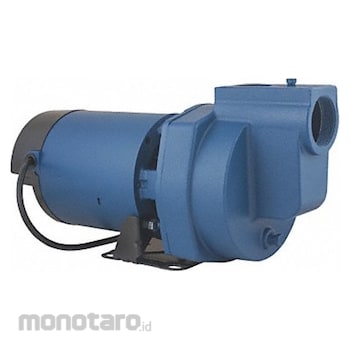

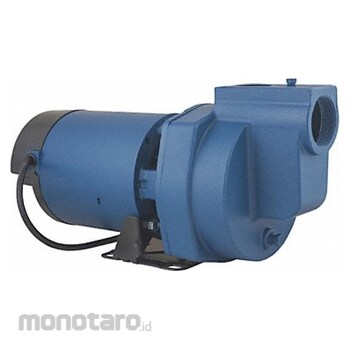

FLINT WALLING Self Priming Sprinkler Pump
#Grup produk P109558738
Sebelum PPN:
Rp14.999.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Case Pressure (Maximum) (psi) | 100 |
| Compatible Discharge Pipe Size (inch) | 1-1/2 |
| Compatible Intake Pipe Size (inch) | 2 |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty cycle | Continuous |
| Electrical Connection Type | Plug-In |
| Flow Rate (Maximum) (gpm) | 67 |
| For Use With Potable Systems | Yes |
| Frequency (Hz) | 60 |
| Impeller Material | Thermoplastic |
| Intake and Discharge Size (inch) | 2, 1-1/2 |
| Maximum RPM | 3450 |
| Maximum Suction Lift (ft) | 25 |
| Motor Enclosure | Open Dripproof |
| Phase | Single |
| Priming | Self-Priming |
| Pump Housing Material | Cast Iron |
| Pumping Application | Irrigation |
| Seal Material | Carbon; Silicon Carbide |
| Series | SP |
| Shut Off Pressure (psi) | 100 |
| Thermal Overload Protection | Yes |
| Wetted Material | Cast Iron; Thermoplastic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Self-priming sprinkler pumps with a motor between 1/2 and 1 HP produce varying flow rates at lower heads.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Sprinkler Pump Phase Single Pump Housing Material Cast Iron Horsepower 1 hp Nameplate Voltage 120/240V AC Suction Lift (Maximum) 25 ft Flow Rate @ 5 psi 72 gpm Flow Rate @ 10 psi 70 gpm Flow Rate @ 20 psi 62 gpm Maximum Feet of Head 91 ft Shut Off Pressure (Maximum) 100 psi Compatible Intake Pipe Size 2 in Compatible Discharge Pipe Size 1 1/2 in Intake Type NPT Motor Enclosure Open Dripproof Flow Rate @ 30 psi 48 gpm Flow Rate @ 40 psi 5 gpm Priming Self-PrimingUlasan Produk
