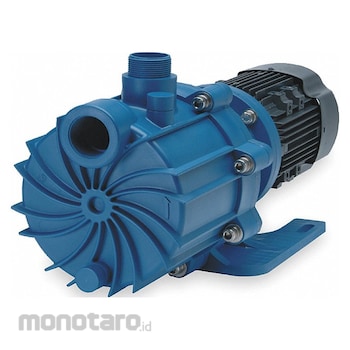

FINISH THOMPSON Centrifugal Pump Magnetic Drive Self Priming
#Grup produk P109558552
Spesifikasi
| UNSPSC | 40151564 |
|---|---|
| Bearing Type | Radial; Thrust |
| Chemical Compatibility | Deionized Water |
| Discharge Pipe Size (inch) | 1-1/2 |
| Discharge Pipe Type | MNPT |
| Discharge Port (inch) | 1-1/2 MNPT |
| Flow Rate @ 15ft of Head (Maximum) (gpm) | 105 |
| Flow Rate @ 18ft of Head (Maximum) (gpm) | 105 |
| Flow Rate @ 24ft of Head (Maximum) (gpm) | 100 |
| Flow Rate @ 3ft of Head (Maximum) (gpm) | 105 |
| Flow Rate @ 40ft of Head (Maximum) (gpm) | 85 |
| Flow Rate @ 50ft of Head (Maximum) (gpm) | 70 |
| Flow Rate @ 6ft of Head (Maximum) (gpm) | 105 |
| Flow Rate @ 9ft of Head (Maximum) (gpm) | 105 |
| Full Load Current (A) | 5.75-5.4/2.7 |
| Gasket Material | Viton |
| Horsepower (Maximum) (HP) | 2 |
| Housing Material | Polypropylene |
| Impeller Material | Polypropylene |
| Intake Pipe Size (inch) | 1-1/2 |
| Intake Pipe Type | FNPT |
| Manufacturer Part Number | SP11P-M215 |
| Maximum Feet Head (ft) | 68 |
| Maximum Media Temperature (°F) | 180 |
| Maximum Motor Speed (rpm) | 3450 |
| Maximum Operating Pressure (psi) | 29 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Type | Induction |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
| Nameplate Voltage (V) | 208-230/460 AC |
| Overall Height (inch) | 11.1 |
| Overall Length (inch) | 24.6 |
| Overall Width (inch) | 9.7 |
| Phase | Three |
| Priming | Self-Priming |
| Series | SP11 |
| Specific Gravity (Maximum) | 1.8 |
| Suction Port (inch) | 1-1/2 FNPT |
| Viscosity (Maximum) (cps) | 50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Magnetic Drive Pump Chemical Compatibility Deionized Water Discharge Pipe Size 1 1/2 in Discharge Pipe Type MNPT Feet of Head (Maximum) 68 ft Flow Rate @ 3 ft of Head (Maximum) 105 gpm Flow Rate @ 6 ft of Head (Maximum) 105 gpm Flow Rate @ 9 ft of Head (Maximum) 105 gpm Flow Rate @ 15 ft of Head (Maximum) 105 gpm Flow Rate @ 24 ft of Head (Maximum) 100 gpm Flow Rate @ 50 ft of Head (Maximum) 70 gpm Horsepower (Maximum) 2 hp Intake Pipe Size 1 1/2 in Intake Pipe Type FNPTUlasan Produk
