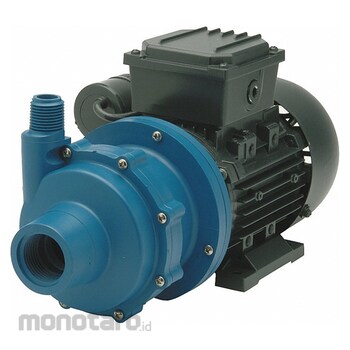

FINISH THOMPSON Chemical Resistant Magnetic Drive Straight Centrifugal Pump
#Grup produk P109558455
Sebelum PPN:
Rp17.999.900 - Rp92.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151564 |
|---|---|
| Bearing Type | Radial; Thrust |
| Chemical Compatibility | Deionized Water |
| Discharge Pipe Type | MNPT |
| Intake Pipe Type | FNPT |
| Max. Specific Gravity | 1.8 |
| Maximum Motor Speed (rpm) | 3450 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Mounting Location | Open Air |
| Mounting Orientation | Horizontal |
| Priming | Manual |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These magnetic-drive straight centrifugal pumps utilize magnets to turn the impeller inside the housing. Their intake connection is in-line with the impeller's eye and pump shaft. The impeller and pumping fluid are separate from the motor's drive shaft, making these pumps suited for handling corrosive liquids.
Feature
Magnetic Drive Pump Chemical Compatibility Deionized Water Discharge Pipe Size 3/4 in Discharge Pipe Type MNPT Feet of Head (Maximum) 31 ft Flow Rate @ 3 ft of Head (Maximum) 30 gpm Flow Rate @ 6 ft of Head (Maximum) 30 gpm Flow Rate @ 9 ft of Head (Maximum) 28 gpm Flow Rate @ 15 ft of Head (Maximum) 25 gpm Flow Rate @ 24 ft of Head (Maximum) 17 gpm Flow Rate @ 50 ft of Head (Maximum) Not Applicable Horsepower (Maximum) 1/2 hp Intake Pipe Size 1 in Intake Pipe Type FNPTUlasan Produk
