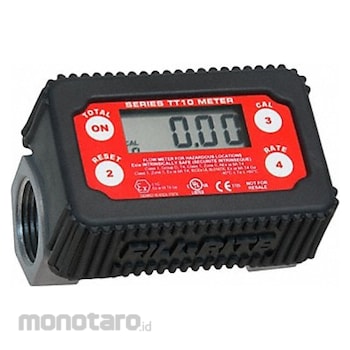

FILL-RITE Turbine Flowmeter & Totalizer
#Grup produk P109558437
Sebelum PPN:
Rp7.699.900 - Rp8.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 41112501 |
|---|---|
| Accuracy (%) | ±1 |
| Connection Size (inch) | 1 |
| Display Type | LCD |
| Flow Rate Range (gpm) | 2-35 |
| Flowmeter Type | Turbine |
| For Pipe Size (inch) | 1 |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Max. Viscosity (SUS) | 370 |
| Max. Voltage | Battery |
| Maximum Flow Rate (GPM) | 35 |
| Maximum Operating Pressure (psi) | 50 |
| Min. Flow Rate (gpm) | 2 |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-Ring Materials | Buna-N |
| Pulse Rate (pulses/gal) | 10 |
| Seal Material | Buna-N; Viton |
| Shaft Material | Stainless Steel |
| Standards | ATEX; CE Certified; cULus Listed; IECEx |
| Voltage Range | Battery |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Inline turbine totalizers for fuels measure the total volume of compatible fuel (e.g., gasoline, kerosene, diesel) moved by the system. Inline meters and sensors are installed level with the system's piping, where media travels directly through the instrument. They're used in applications with limited space, minimize the impact on system line pressure, and require minimal plumbing alterations.
Feature
Flowmeter Product Type 4-Digit Digital Fuel Transfer Meter Flowmeter Type Turbine Accuracy +/-1 Percent Connection Size 1 in Connection Type NPT Compatible Flow Material Diesel Fuels Gasoline Solvents Media Temperature - Maximum 176 Degrees F Media Temperature - Minimum -40 Degrees F Viscosity - Maximum 370 SUS Voltage - Maximum Battery Housing Material Aluminum Rotor Material Acetal O-Ring Material Buna-N Seal Material Buna-N Viton Shaft Material Stainless SteelUlasan Produk
