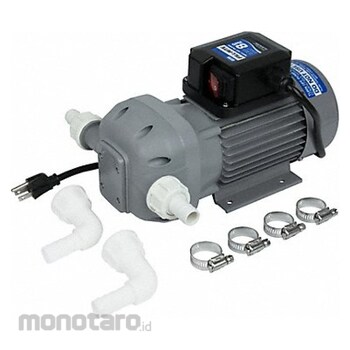

FILL-RITE Electric-Operated DEF Transfer Pump
#Grup produk P109558215
Sebelum PPN:
Rp9.599.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151532 |
|---|---|
| Adapter Material | Nylon |
| Agency Compliance | ETL |
| Diesel Exhaust Fluid Compatible | Yes |
| Discharge Connection Type | BSP |
| Discharge Tube Outlet ID (inch) | 3/4 |
| Discharge Tube Outlet OD (inch) | 1 |
| For Container Type | Drum; Tote |
| For Media Type | DEF |
| For use with | Diesel Exhaust Fluid |
| Height Above Container (inch) | 2-1/2 |
| Housing Material | Polypropylene |
| Includes | (2) 1 in BSPP x 3/4 in Hose Barb 90° Elbows(2) 1 in BSPP x 3/4 in Hose Barb Straight Fittings(4) Worm Gear Hose Clamps |
| Includes Bung Adapter | No |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Max. Head Pressure (psi) | 38 |
| Max. Outlet Pressure (psi) | 38 |
| Max. Viscosity (CPS) | 40 |
| Maximum Flow Rate (GPM) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Head (ft) | 30 |
| Metered | No |
| Minimum Fluid Temperature (°F) | 15 |
| Motor HP (HP) | 1/4 |
| Noise Level (dB) | 80 |
| Number of Phases | 1 |
| Overall Length (inch) | 15-1/4 |
| Power Source | Electric |
| Pump Connection ID (inch) | 3/4 |
| Pump Connection OD (inch) | 1 |
| Pump Connection Type | BSP |
| Pump Package Type | Basic Pump without Discharge Hose |
| Runs Dry | Yes |
| Seal Material | EPDM |
| Self Priming | Yes |
| Suction Tube Material | EPDM |
| Suction Tube OD (inch) | 1 |
| Variable Speed | No |
| Wetted Materials | EPDM; Nylon; Santoprene; Stainless Steel |
| for Container Size (gal) | 55; 275; 330 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These transfer pumps move DEF (diesel exhaust fluid) between containers or fill a vehicle's DEF reservoirs.
Peringatan
Produk beroperasi pada tegangan 115 volt AC, maka akan memerlukan transformator/trafo atau adaptor yang sesuai untuk mengubah tegangan listrik menjadi 115 volt AC. Tanpa adaptor atau transformator yang sesuai, penggunaan barang elektronik dengan tegangan 115 volt AC di Indonesia dapat menyebabkan kerusakan pada perangkat tersebut. Oleh karena itu, penting untuk memeriksa spesifikasi teknis barang sebelum menggunakannya di negara dengan tegangan listrik yang berbeda.Feature
Electric Operated Drum Pump Max Head Pressure 38 psi Max Outlet Pressure 38 psi For Use With Diesel Exhaust Fluid Rated Voltage 115V AC Plug Type Type B Pump Connection ID 3/4 in Suction Tube OD 1 in Cord Length 72 in Includes Bung Adapter No Runs Dry Yes Frequency (Hz) 60 Power Source Electric Variable Speed No Includes Discharge Hose No Self-Priming Yes Compatible Chemicals DEF Discharge Connection Type BSP Features Integral Pulsation Dampener Smooth FlowUlasan Produk
