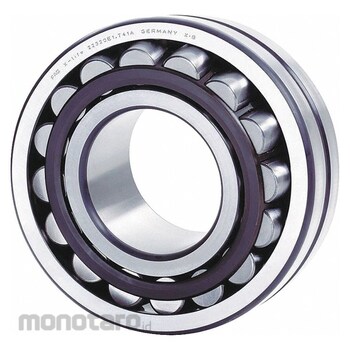

FAG BEARINGS Spherical Roller Bearing
#Grup produk P109557632
Spesifikasi
| UNSPSC | 31171510 |
|---|---|
| Bearing Industry Number | 22205 |
| Bore Diameter (mm) | 25 |
| Bore Type | Cylindrical |
| Cage Material | Steel |
| Closure | Open |
| Dynamic Radial Load Capacity (N) | 48500 |
| Fillet Radius (mm) | 1 |
| Load Direction | Radial; Thrust |
| Lubricant Material | Grease; Oil |
| Manufacturer Part Number | 22205-E1-XL-C3 |
| Maximum Speed (rpm) | 14400 Grease; 14400 Oil |
| Maximum Temperature (°C) | 200 |
| Minimum Temperature (°C) | -30 |
| Outside Diameter (mm) | 52 |
| Overall Width (mm) | 18 |
| Ring Material | Alloy Steel |
| Ring Material Grade | SUJ2 |
| Roller Material | Alloy Steel |
| Roller Material Grade | SUJ2 |
| Standards | DIN 635-2 |
| Static Radial Load Capacity (N) | 42500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High-clearance spherical roller bearings have more space within the bearing housing. They are useful when there is an increased press fit on the housing, elevated temperatures that may cause expansion, or a slight misalignment between the housing and the shaft.
Feature
Spherical Roller Bearing Bearing Industry Number 22205 Bore Diameter 25 mm Bore Type Cylindrical Cage Material Steel Closure Open Lubricant Material Grease Oil Maximum Speed 14 400 RPM Grease 14 400 RPM Oil Maximum Temperature 200 Degrees C Minimum Temperature -30 Degrees C Outside Diameter 52 mm Overall Width 18 mm Ring Material Alloy Steel Roller Material Alloy Steel Seal Type Not Applicable System of Measurement Metric Dynamic Radial Load Capacity 48 500 NUlasan Produk
