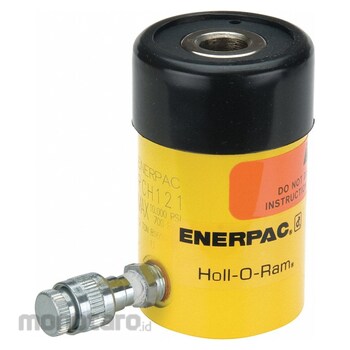

Enerpac Hollow Hydraulic Ram
#Grup produk P109556776
Spesifikasi
| UNSPSC | 27121602 |
|---|---|
| Body Material | Steel |
| Center Hole Dia. (inch) | 0.75 |
| Collar Thread Size | 2-3/4\"-16 |
| Cylinder Type | Hollow Plunger |
| Effective Push Area (sq.in) | 2.76 |
| Extended Height (inch) | 6.37 |
| Includes | Coupler; Reducer |
| Maximum Pressure (psi) | 10000 |
| Maximum Push Capacity (t) | 12 |
| Nominal Capacity (t) | 12 |
| Nominal Stroke Length (inch) | 2 |
| Oil Capacity Push (cu.in) | 4.49 |
| Outside Dia. (inch) | 2.75 |
| Plunger Dia. (inch) | 1.38 |
| Retracted Height (inch) | 4.75 |
| Series | RCH |
| Single Acting/Double Acting | Single Acting |
| Stroke Length (inch) | 1-5/8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
General purpose hollow rams attach to a hydraulic pump to lift heavy loads with minimal effort. The hollow piston accepts a threaded rod to allow the ram to be used for push and pull applications. They have a maximum working pressure of 10,000 psi.
Feature
General Purpose Hydraulic Ram Single Acting Hollow Plunger Steel Nominal Capacity 12 ton Max Push Capacity 12 ton Stroke Length 1 5/8 in Nominal Stroke Length 2 in Effective Push Area 2.76 sq in Max Pressure 10 000 psi Oil Capacity Push 4.49 cu in Retracted Height 4.75 in Extended Height 6.37 in Outside Dia 2.75 in Plunger Dia 1.38 in Plunger Thread Size Not Applicable Collar Thread Size 2-3/4 In.-16 Center Hole Dia 0.75 in RCH Series Includes Coupler ReducerUlasan Produk
