DAYTON Well Water Tanks, Fitting & AVCS
#Grup produk P109554839
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 24111810 |
|---|---|
| Body Material | Fiberglass |
| Diameter (inch) | 16 |
| Drawdown @ 20-40psi (gpm) | 14.7 |
| Drawdown @ 30-50psi (gpm) | 12.5 |
| Drawdown @ 40-60psi (gpm) | 10.8 |
| Drawdown @ 50-70psi (gpm) | 9.5 |
| Drawdown @ 60-80psi (gpm) | 8.5 |
| Drawdown @ 70-90psi (gpm) | 7.7 |
| Drawdown @ 80-100psi (gpm) | 7 |
| Inlet (inch) | 1 |
| Maximum Water Temperature (°F) | 120 |
| Overall Height (inch) | 59 |
| Precharge Pressure (psi) | 40 |
| Tank Capacity (gal) | 40 |
| Tank Orientation | Vertical |
| Tank Type | Pre-Charged |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

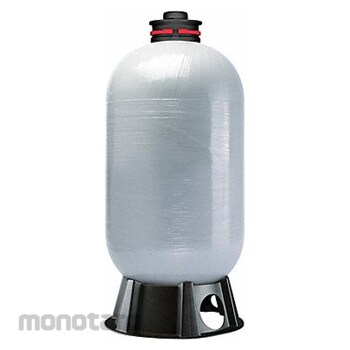

These well water tanks act as a reservoir to store water and keep the pressure consistent to reduce the start/stop cycling of the pump. Tanks keep the water pressure constant with an air bladder system that is precharged (a set amount of air is pumped into the bladder) when the tank is assembled at the factory or charged with an air compressor just before installation. Models without an air bladder require an air volume control to maintain air pressure for a consistent water flow. Tanks are cylinder shaped with rounded ends and installed in a vertical or horizontal position.
Feature
Water Tank Tank Type Pre-Charged Tank Capacity 40 gal Tank Orientation Vertical Precharge Pressure 40 psi Body Material Fiberglass Max Water Temp 120 Degrees F Drawdown @ 20-40 PSI 14.7 gpm Drawdown @ 30-50 PSI 12.5 gpm Drawdown @ 40-60 PSI 10.8 gpm Drawdown @ 50-70 PSI 9.5 gpm Drawdown @ 60-80 PSI 8.5 gpm Drawdown @ 70-90 PSI 7.7 gpm Drawdown @ 80-100 PSI 7 gpm Overall Height 59 in Diameter 16 in Inlet 1 in Manufacturers Warranty Length 5 yrDokumentasi Produk
