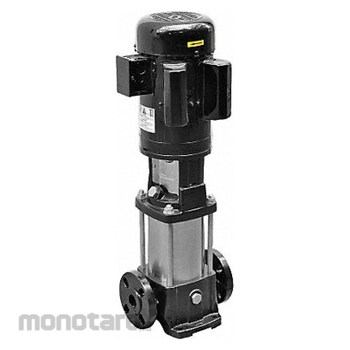

DAYTON Pompa Dorong Vertikal
#Grup produk P109554811
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Amps (A) | 16.6/9.4-8.3 |
| Best Efficiency Pressure (psi) | 104 |
| Case Pressure (Maximum) (psi) | 245 |
| Compatible Discharge Pipe Size (inch) | 1-1/4 |
| Compatible Intake Pipe Size (inch) | 1-1/4 |
| Connection Type | Flange |
| Discharge Type | Flange |
| Duty cycle | Continuous |
| Flow Rate @ 100psi (gpm) | 16 |
| Flow Rate @ 120psi (gpm) | 12 |
| Flow Rate @ 140psi (gpm) | 4 |
| Flow Rate @ 60psi (gpm) | 22 |
| Flow Rate @ 70psi (gpm) | 20.5 |
| Flow Rate @ 80psi (gpm) | 19 |
| Flow Rate @ 90psi (gpm) | 17.5 |
| For Use With Potable Systems | No |
| Frequency (Hz) | 60 |
| Horsepower (HP) | 2 |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Intake Size (inch) | 1-1/4 |
| Manufacturer Part Number | 5UWJ3 |
| Maximum Media Temperature (°F) | 248 |
| Maximum Motor Ambient Temperature (°F) | 104 |
| Maximum RPM | 3450 |
| Minimum Motor Ambient Temperature (°F) | 40 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Mounting Orientation | Vertical |
| Nameplate Voltage (V) | 115/208-230 AC |
| Number of Stages | 11 |
| Overall Height (inch) | 28.94 |
| Overall Length (inch) | 9.88 |
| Overall Width (inch) | 8 |
| Phase | Single |
| Pump Housing Material | Cast Iron |
| Seal Material | EPDM; Silicon Carbide; Stainless Steel |
| Shut Off Pressure (psi) | 148 |
| Solid Diameter (Maximum) (inch) | 0.07 |
| Standards | cULus Listed |
| Wetted Material | Cast Iron; EPDM; Silicon Carbide; Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Vertical booster pumps with a motor between 1-1/2 and 2 HP achieve higher pressure and flow rates than pumps with a lower HP.
Feature
Booster Pump Phase Single Pump Housing Material Cast Iron Motor Enclosure Totally Enclosed Fan Cooled Horsepower 2 hp Nameplate Voltage 115/208-230V AC Flow Rate @ 60 psi 22 gpm Flow Rate @ 70 psi 20.5 gpm Flow Rate @ 80 psi 19 gpm Flow Rate @ 90 psi 17.5 gpm Flow Rate @ 100 psi 16 gpm Flow Rate @ 120 psi 12 gpm Shut Off Pressure (Maximum) 148 psi Compatible Intake Pipe Size 1 1/4 in Compatible Discharge Pipe Size 1 1/4 in Intake Type Flange Mounting Orientation VerticalDokumentasi Produk
