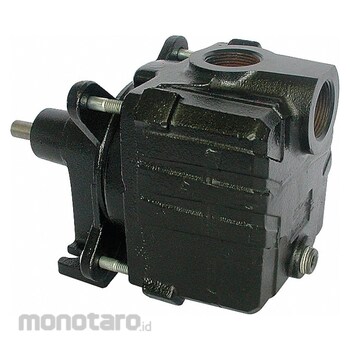

DAYTON Self Priming Pedestal Mount Centrifugal Pump
#Grup produk P109554255
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40151503 |
|---|---|
| Best Efficiency Flow (gpm) | 14 |
| Best Efficiency Head (ft) | 36 |
| Compatible Discharge Pipe Size (inch) | 1-1/4 |
| Compatible Intake Pipe Size (inch) | 1-1/4 |
| Compatible with Media Type | Non-Flammable Liquids |
| Connection Type | NPT |
| Duty cycle | Continuous |
| Flow Rate (Maximum) (gpm) | 38 |
| For Use With Potable Systems | No |
| Impeller Material | Cast Iron |
| Includes | Manual |
| Manufacturer Part Number | 5PXX7 |
| Maximum Feet of Head (ft) | 40 |
| Maximum Flow Rate @ 10ft of Head (gpm) | 38 |
| Maximum Flow Rate @ 15ft of Head (gpm) | 34 |
| Maximum Flow Rate @ 20ft of Head (gpm) | 28 |
| Maximum Flow Rate @ 30ft of Head (gpm) | 15 |
| Maximum Flow Rate @ 40ft of Head (gpm) | 0 (zero) |
| Maximum Flow Rate @ 5ft of Head (gpm) | 0 (zero) |
| Maximum Suction Lift (ft) | 25 |
| Minimum Feet Head (ft) | 10 |
| Overall Height (inch) | 7.25 |
| Overall Length (inch) | 10.88 |
| Overall Width (inch) | 6.63 |
| Priming | Self-Priming |
| Pump Housing Material | Cast Iron |
| Pumping Application | High-Volume Industrial and Commercial Applications Including Liquid and Chemical Transfer |
| Seal Material | Buna-N; Carbon; Ceramic; Stainless Steel |
| Shaft Outside Diameter (inch) | 5/8 |
| Sized for Horsepower (HP) | 1 |
| Solid Diameter (Maximum) (inch) | 0.38 |
| Wetted Material | Buna-N; Carbon; Carbon Steel; Cast Iron; Ceramic; Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pumps use suction lift to draw liquids up from a source located below the pump's inlet. Self-priming pedestal pumps are sized by HP and pair with motors of the same HP to meet head and flow rate requirements. They do not include a motor.
Feature
Pedestal Pump Pump Housing Material Cast Iron Sized for Horsepower 1 hp Flow Rate @ 10 ft of Head (Maximum) 38 gpm Flow Rate @ 20 ft of Head (Maximum) 28 gpm Flow Rate @ 30 ft of Head (Maximum) 15 gpm Flow Rate @ 40 ft of Head (Maximum) 0 gpm Maximum Feet of Head 40 ft Intake Type NPT Compatible Intake Pipe Size 1 1/4 in Compatible Discharge Pipe Size 1 1/4 in Suction Lift (Maximum) 25 ft Shaft Outside Diameter 5/8 in Priming Self-Priming NPSHr 49 psi Best Efficiency Flow 14 gpmDokumentasi Produk
