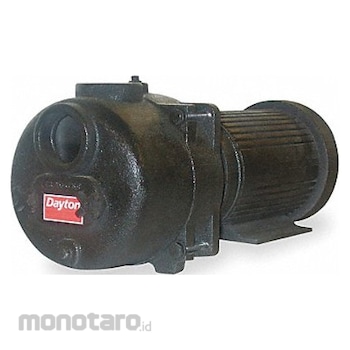

DAYTON Self Priming Centrifugal Trash Pump
#Grup produk P109554237
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp18.999.900 - Rp40.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151517 |
|---|---|
| Best Efficiency Head (ft) | 39 |
| Compatible with Media Type | Sewage |
| Connection Type | NPT |
| Discharge Type | NPT |
| Duty cycle | Continuous |
| Frequency (Hz) | 60 |
| Impeller Material | Stainless Steel |
| Includes | Strainer |
| Maximum Media Temperature (°F) | 160 |
| Maximum Motor Ambient Temperature (°F) | 104 |
| Maximum RPM | 3450 |
| Maximum Suction Lift (ft) | 20 |
| Minimum Media Temperature (°F) | 40 |
| Minimum Motor Ambient Temperature (°F) | 104 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Priming | Self-Priming |
| Pump Housing Material | Cast Iron |
| Pumping Application | Clear or Gray Water; Irrigation; Liquid Transfer; Sewage Treatment |
| Seal Material | Buna-N; Carbon; Ceramic |
| Standards | cULus Listed |
| Submersible | No |
| Thermal Overload Protection | No |
| Wetted Material | Buna-N; Carbon; Ceramic; CI; Stainless Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These self-priming centrifugal trash pumps draw liquids containing large solids or debris. They must be primed before their first use.
Feature
Trash Pump Compatible Discharge Pipe Size 3 in Compatible Intake Pipe Size 3 in Discharge Type NPT Maximum Feet of Head 92 ft Flow Rate @ 20 ft of Head (Maximum) 357 gpm Flow Rate @ 40 ft of Head (Maximum) 214 gpm Flow Rate @ 60 ft of Head (Maximum) 128 gpm Horsepower 7 1/2 hp Intake Type NPT Motor Enclosure Totally Enclosed Fan Cooled Nameplate Voltage 208-230/460V AC Phase Three Priming Self-Priming Pump Housing Material Cast Iron Solid Diameter (Maximum) 1.3 inDokumentasi Produk
