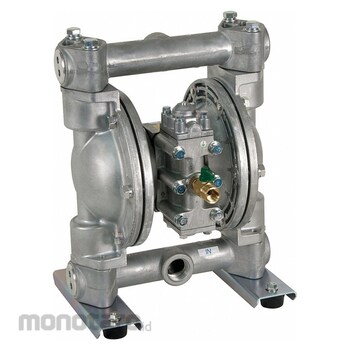

DAYTON Natural Gas-Operated Double Diaphragm Pump
#Grup produk P109553478
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 40151548 |
|---|---|
| Air Connection Type | FNPT |
| Air Consumption (scfm) | 55 |
| Air Intake Connection Size (inch) | 3/8 |
| Air Intake Pressure (Maximum) (psi) | 100 |
| Check Seat Material | Aluminium |
| Diaphragm Material | Buna-N |
| Discharge Port (inch) | 1 NPT |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Duty cycle | Continuous |
| Flow Rate @ 100psi (gpm) | 50 |
| Flow Rate @ 20psi (gpm) | 28 |
| Flow Rate @ 40psi (gpm) | 37 |
| Flow Rate @ 60psi (gpm) | 40 |
| Flow Rate @ 80psi (gpm) | 44 |
| For Use With Potable Systems | No |
| Housing Material | Aluminium |
| Includes | Ball Valve |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturer Part Number | 22A593 |
| Max. Discharge Pressure (psi) | 100 |
| Maximum Diameter Solids (inch) | 0.19 |
| Maximum Flow Rate (GPM) | 46 |
| Maximum Media Temperature (°F) | 180 |
| Media Discharge Location | Top |
| Media Intake Connection Size (inch) | 1 |
| Media Intake Location | Bottom |
| Minimum Media Temperature (°F) | 0 (zero) |
| Mounting Hardware Material | Stainless Steel; Steel |
| Non-Wetted Housing Material | Aluminium |
| Overall Height (inch) | 15.1 |
| Overall Length (inch) | 8.5 |
| Overall Width (inch) | 11.3 |
| Priming | Self-Priming |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Gas |
| Standards | CSA Certified |
| Suction Port (inch) | 1 FNPT |
| Valve Material | Buna-N |
| Valve Type | Ball |
| Viscosity (Maximum) (cps) | 40000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Aluminum housing air-operated double diaphragm pumps are lightweight and moderately resistant to chemicals. These pumps are suited for applications that require the pump to be relocated often. They're used in locations where natural gas is readily available, common in the oil and gas industry.
Feature
Double Diaphragm Pump Air Consumption (Maximum) 55 scfm Air Intake Connection Size 3/8 in Air Intake Connection Type FNPT Check Seat Material Aluminum Diaphragm Material Buna-N Feet of Head (Maximum) Not Applicable Flow Rate (Maximum) 46 gpm Manifold Connection Single Port Media Discharge Connection Size 1 in Media Discharge Connection Type NPT Media Discharge Location Top Media Intake Connection Size 1 in Media Intake Connection Type FNPT Media Intake Location BottomDokumentasi Produk
